دیتاشیت ADCMP553BRMZ
مشخصات دیتاشیت
| نام دیتاشیت |

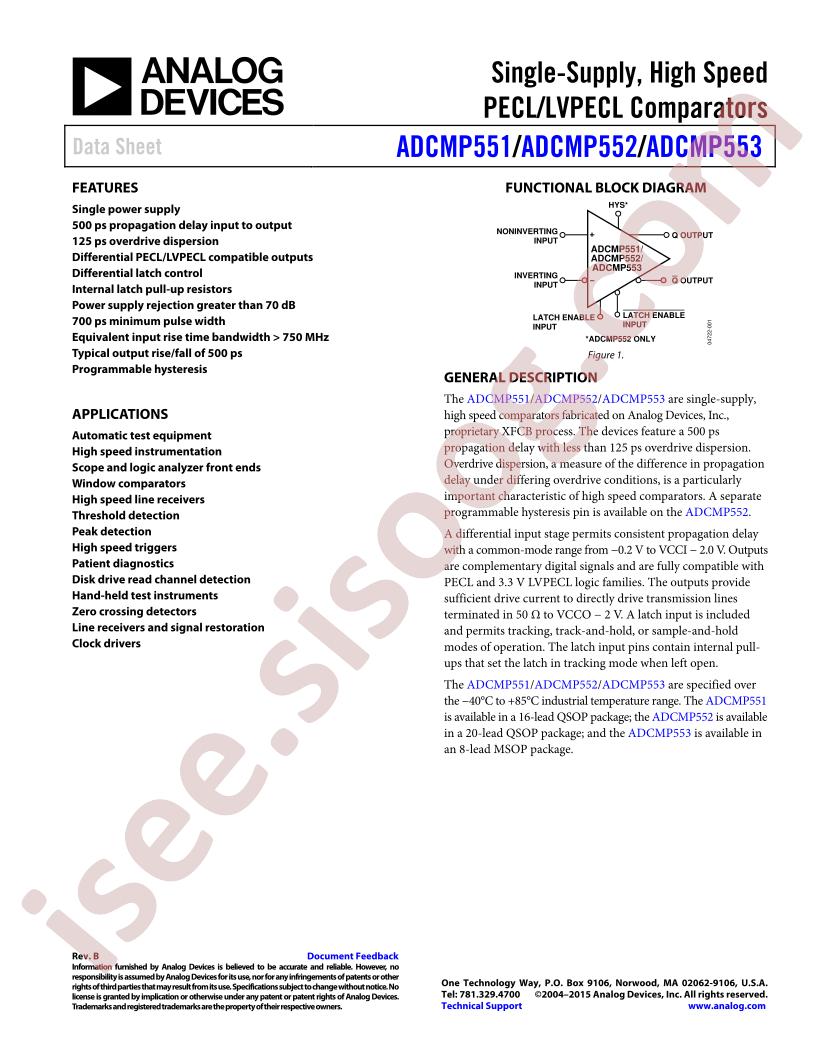

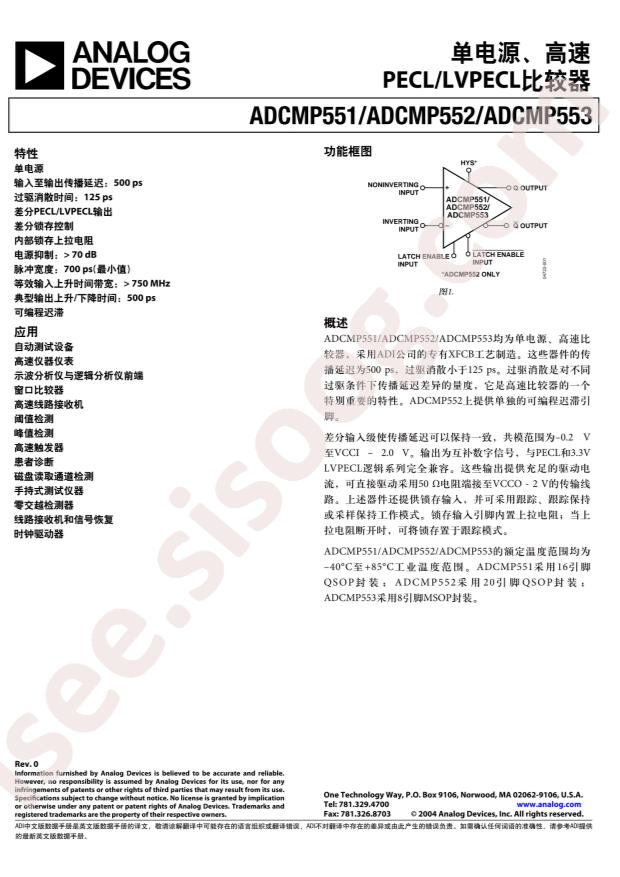

ADCMP551-553
|
| حجم فایل |
203.609
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
15
|
مشخصات
-
RoHS:
true
-
Category:
Operational Amplifier/Comparator/Comparators
-
Datasheet:
Analog Devices ADCMP553BRMZ
-
Output Type:
互补;Differential;LVPECL;开射;PECL
-
Supply Voltage:
3.14V~5.25V
-
Number of Elements:
-
-
Operating Temperature:
-40°C~+85°C
-
Input Bias Current (Ib):
28uA
-
Input Offset Voltage (Vos):
10mV
-
Input Hysteresis Voltage (Vhys):
0.5mV
-
Common Mode Rejection Ratio (CMRR):
76dB
-
Package:
MSOP-8
-
Manufacturer:
Analog Devices
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Active
-
Type:
with Latch
-
Voltage - Supply, Single/Dual (±):
3.14V ~ 5.25V
-
Voltage - Input Offset (Max):
10mV @ 3.3V
-
Current - Input Bias (Max):
28µA @ 3.3V
-
Current - Output (Typ):
55mA @ 3.3V
-
Current - Quiescent (Max):
13mA
-
CMRR, PSRR (Typ):
76dB CMRR, 70dB PSRR
-
Propagation Delay (Max):
0.625ns
-
Hysteresis:
± 0.5mV
-
Package / Case:
8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
8-MSOP
-
Base Part Number:
ADCMP553
-
detail:
Comparator with Latch Complementary, Differential, LVPECL, Open-Emitter, PECL 8-MSOP
