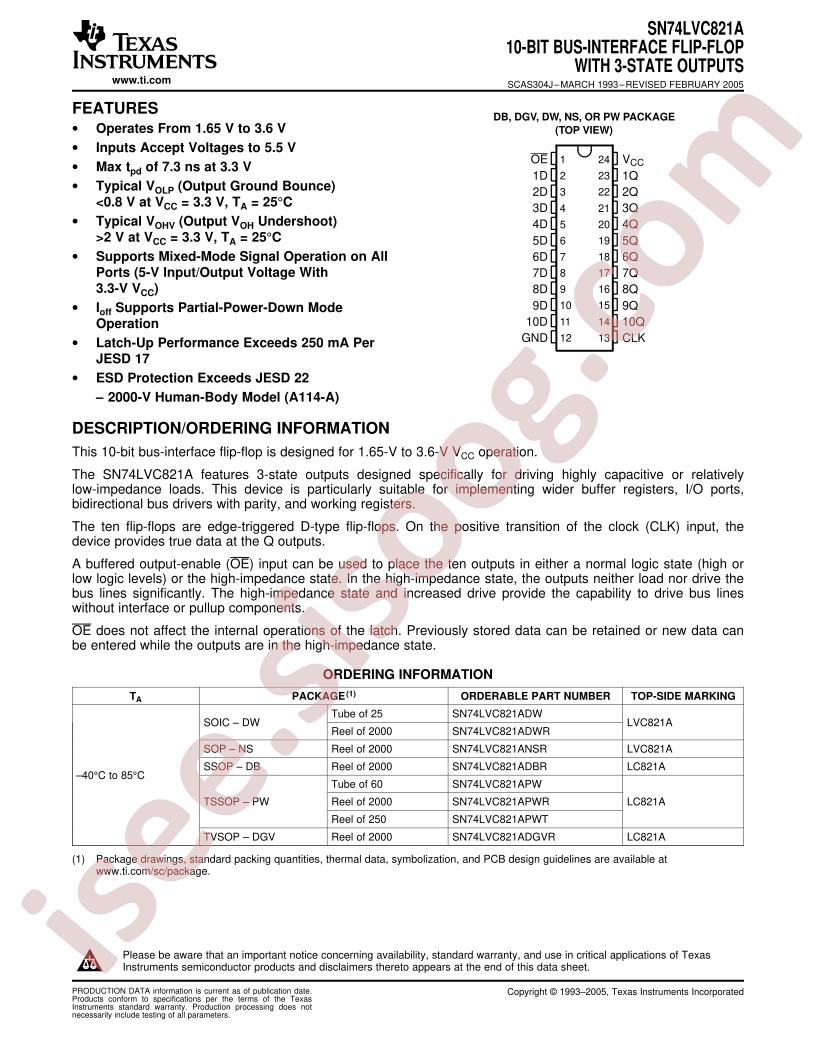

SN74LVC821A دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
SN74LVC821A
|
|
حجم فایل
|
952.933
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
18
|
مشخصات فنی
-
RoHS:
true
-
Type:
D-Type
-
Series:
74LVC
-
Category:
Logic ICs/Flip Flops
-
Datasheet:
Texas Instruments SN74LVC821ADWR
-
Output Type:
Tri-State;Non-Inverted
-
Sink Current:
24mA
-
Trigger Type:
上升沿
-
Source Current:
24mA
-
Supply Voltage:
1.65V~3.6V
-
Clock Frequency:
150MHz
-
Input Capacitance:
5pF
-
Number of Elements:
1
-
Operating Temperature:
-40°C~+85°C
-
Quiescent Current (Iq):
10uA
-
Maximum Propagation Delay:
7.3ns@3.3V,50pF
-
Number of Bits per Element:
10
-
Package:
SOP-24-300mil
-
Manufacturer:
Texas Instruments
-
Package / Case:
24-SOIC (0.295", 7.50mm Width)
-
Current - Output High, Low:
24mA, 24mA
-
Function:
Standard
-
Current - Quiescent (Iq):
10µA
-
Part Status:
Active
-
Mounting Type:
Surface Mount
-
Max Propagation Delay @ V, Max CL:
7.3ns @ 3.3V, 50pF
-
Voltage - Supply:
1.65V ~ 3.6V
-
Packaging:
Cut Tape (CT)
-
Base Part Number:
SN74LVC82
-
Supplier Device Package:
20-SOIC
-
detail:
Flip Flop 1 Element D-Type 10 Bit Positive Edge 24-SOIC (0.295", 7.50mm Width)
