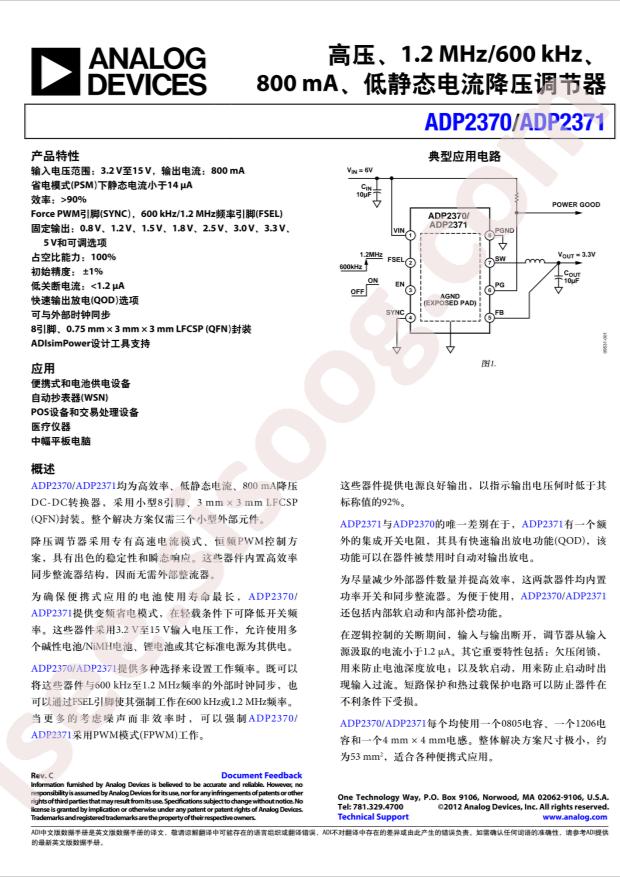

دیتاشیت ADP2370ACPZ-R7
مشخصات دیتاشیت
| نام دیتاشیت |
ADP2370,71
|
| حجم فایل |
2319.036
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
32
|
مشخصات
-
RoHS:
true
-
Category:
Power Supply Chip/DC-DC Converters
-
Function:
Step-down type
-
Topology:
Step-down
-
Datasheet:

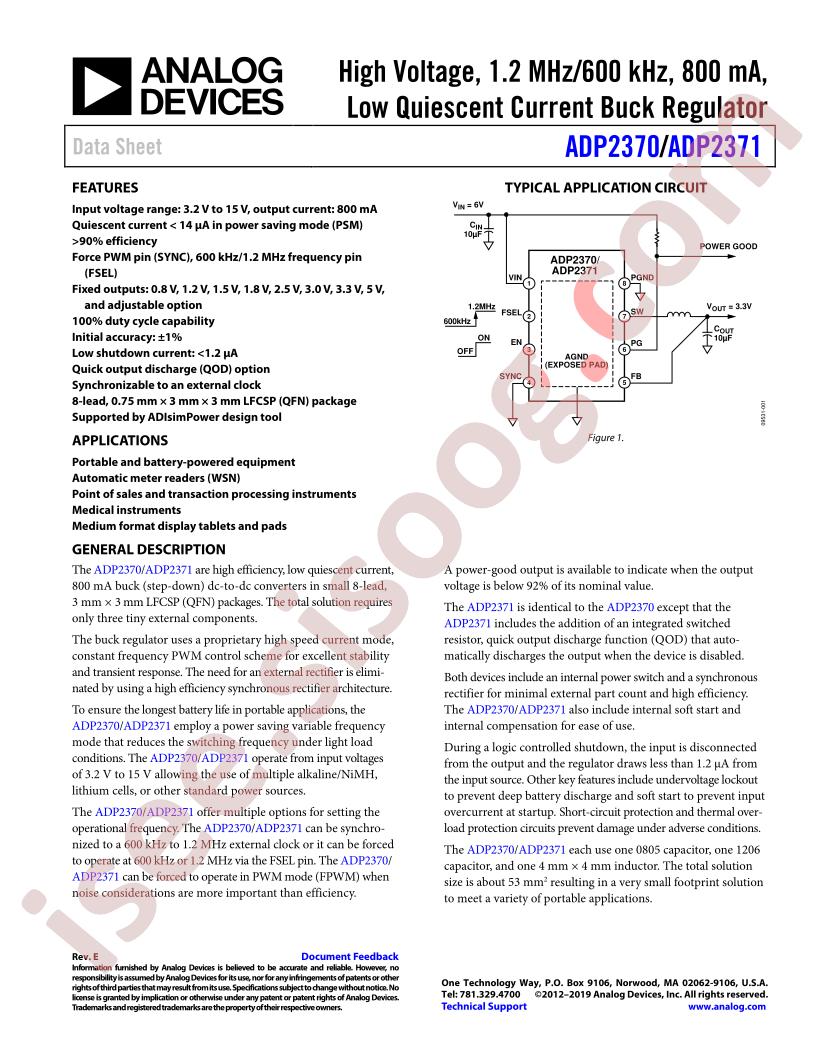

Analog Devices ADP2370ACPZ-R7
-
Output Type:
Adjustable
-
Input Voltage:
3.2V~15V
-
Output Voltage:
0.8V~14V
-
Number of Outputs:
1
-
Switching Frequency:
1.2MHz
-
Output Current (Max):
800mA
-
Operating Temperature:
-40°C~+85°C@(TA)
-
Synchronous Rectification:
Yes
-
Package:
LFCSP-8-WD
-
Manufacturer:
Analog Devices
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Output Configuration:
Positive
-
Voltage - Input (Min):
3.2V
-
Voltage - Input (Max):
15V
-
Voltage - Output (Min/Fixed):
0.8V
-
Voltage - Output (Max):
14V
-
Current - Output:
800mA
-
Frequency - Switching:
600kHz ~ 1.2MHz
-
Synchronous Rectifier:
Yes
-
Mounting Type:
Surface Mount
-
Package / Case:
8-WFDFN Exposed Pad, CSP
-
Supplier Device Package:
8-LFCSP-WD (3x3)
-
Base Part Number:
ADP2370
-
detail:
Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 800mA 8-WFDFN Exposed Pad, CSP
