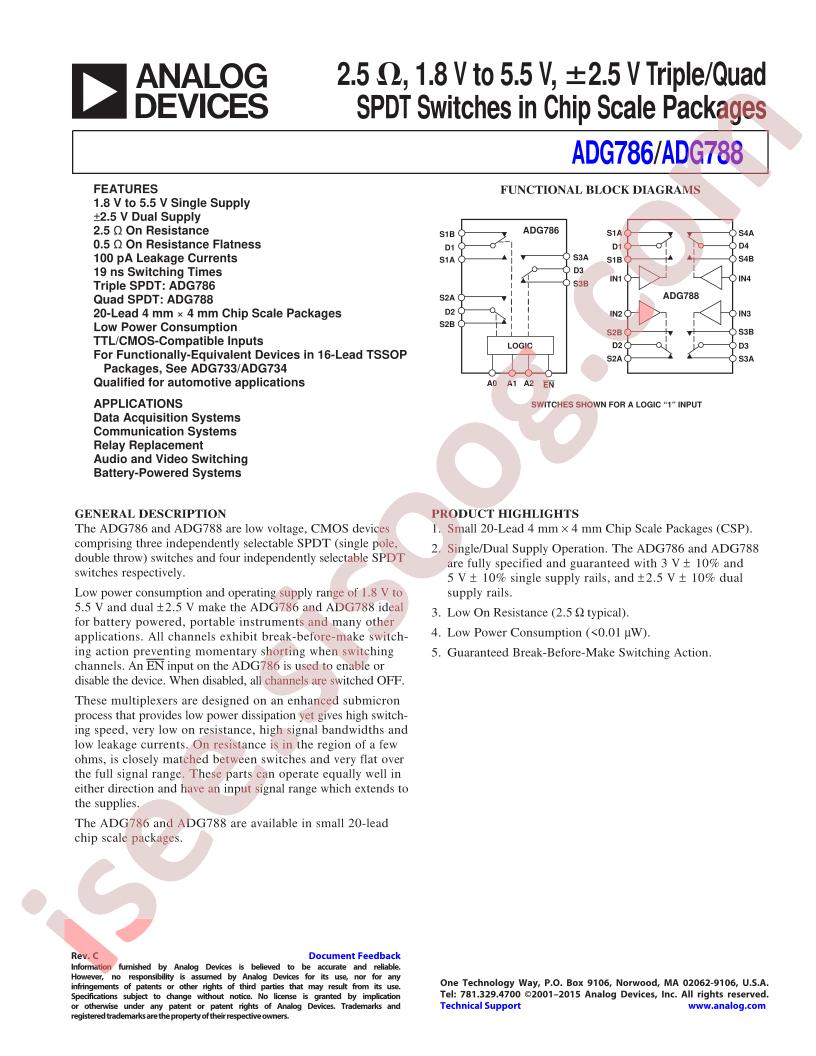

دیتاشیت ADG788BCPZ-REEL7
مشخصات دیتاشیت
| نام دیتاشیت |
ADG786,88
|
| حجم فایل |
368.462
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
11
|
مشخصات
-
RoHS:
true
-
Category:
Communication Interface Chip/UART/485/232/Analog Switches / Multiplexers
-
Datasheet:
Analog Devices ADG788BCPZ-REEL7
-
Turn-on time:
21ns
-
Turn-off time:
10ns
-
Supply Voltage:
1.8V~5.5V
-
Switch Circuit:
SPDT(SPDT)
-
Number of Channels:
4
-
On-State Resistance (Max):
4.5Ω
-
Package:
LFCSP-20
-
Manufacturer:
Analog Devices
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Multiplexer/Demultiplexer Circuit:
2:1
-
Number of Circuits:
4
-
Channel-to-Channel Matching (ΔRon):
-
-
Voltage - Supply, Single (V+):
1.8V ~ 5.5V
-
Voltage - Supply, Dual (V±):
±2.5V
-
Switch Time (Ton, Toff) (Max):
21ns, 10ns (Typ)
-
-3db Bandwidth:
160MHz
-
Charge Injection:
5pC
-
Channel Capacitance (CS(off), CD(off)):
11pF
-
Current - Leakage (IS(off)) (Max):
100pA
-
Crosstalk:
-80dB @ 1MHz
-
Operating Temperature:
-40°C ~ 85°C (TA)
-
Mounting Type:
Surface Mount
-
Package / Case:
20-WFQFN Exposed Pad, CSP
-
Supplier Device Package:
20-LFCSP-WQ (4x4)
-
Base Part Number:
ADG788
-
detail:
4 Circuit IC Switch 2:1 4.5Ohm 20-LFCSP-WQ (4x4)
