AD8058ARMZ-REEL7 Datasheet

AD8058ARMZ-REEL7

Datasheet specifications

Datasheet's name AD8058ARMZ-REEL7
File size 91.063 KB
File type pdf
Number of pages 16

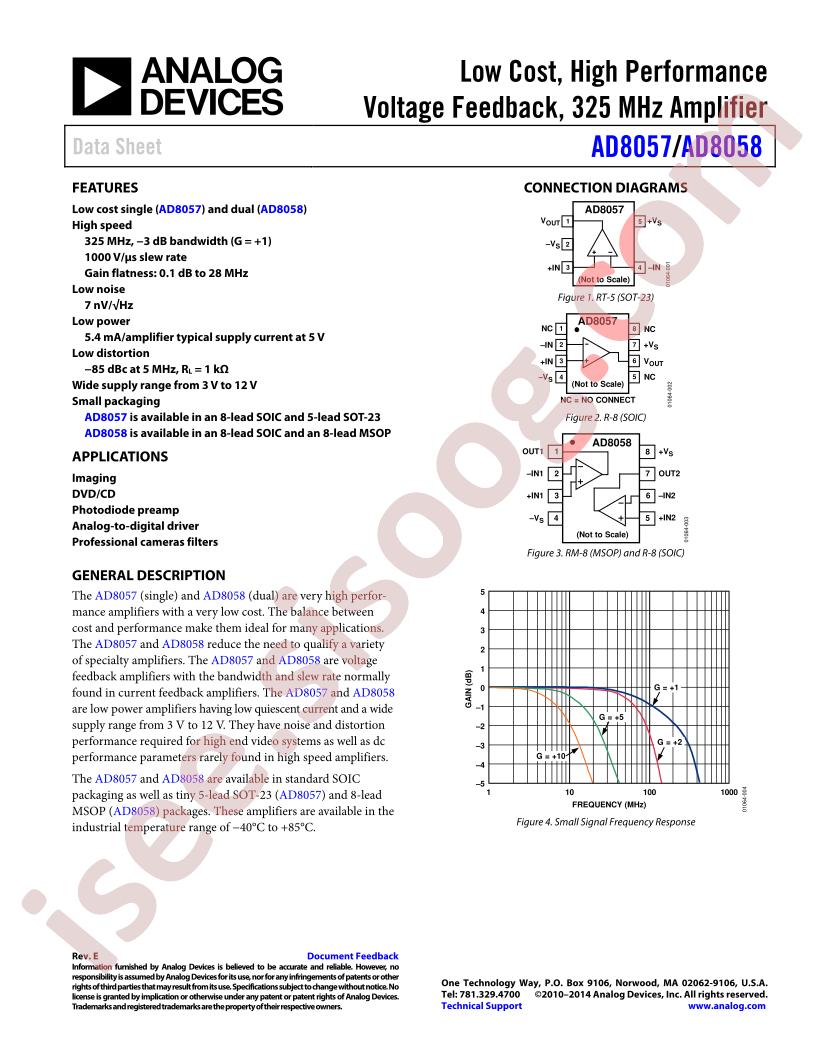

Download Datasheet AD8058ARMZ-REEL7

Download Datasheet

Other documentations

AD8057/58 16 pages

Technical specifications

  • RoHS: true
  • Category: Operational Amplifier/Comparator/Operational Amplifier
  • Datasheet: Analog Devices AD8058ARMZ-REEL7
  • -3db Bandwidth: 325MHz
  • Output Current: -
  • Supply Current: 14mA
  • Number of Circuits: 2
  • Operating Temperature: -40°C~+85°C
  • Current - Input Bias(Ib): 500nA
  • Gain Bandwidth Product(GBP): 100MHz
  • Package: MSOP-8
  • Manufacturer: Analog Devices
  • Series: -
  • Packaging: Tube
  • Part Status: Obsolete
  • Amplifier Type: Voltage Feedback
  • Output Type: -
  • Slew Rate: 1150V/µs
  • Current - Input Bias: 500nA
  • Voltage - Input Offset: 1mV
  • Current - Supply: 14mA
  • Voltage - Supply, Single/Dual (±): 3V ~ 12V, ±1.5V ~ 6V
  • Mounting Type: Surface Mount
  • Package / Case: 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
  • Supplier Device Package: 8-MSOP
  • Base Part Number: AD8058
  • detail: Voltage Feedback Amplifier 2 Circuit 8-MSOP
