دیتاشیت ADP5052ACPZ-R7

مشخصات دیتاشیت

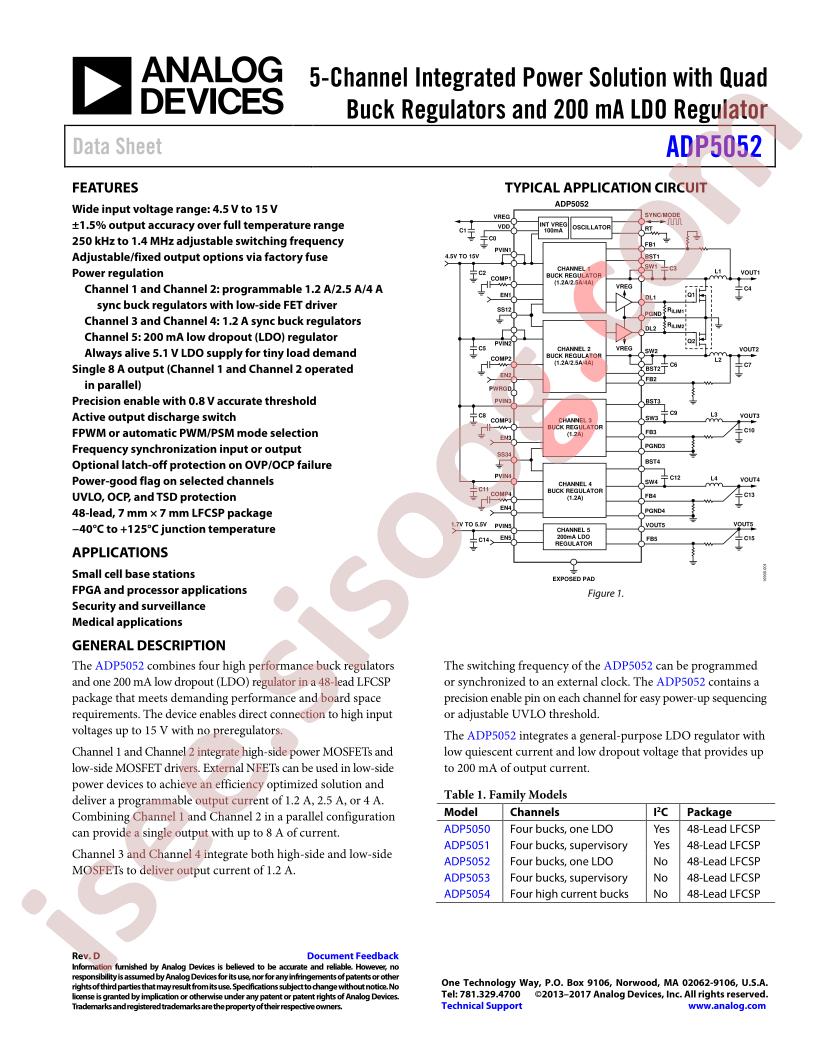

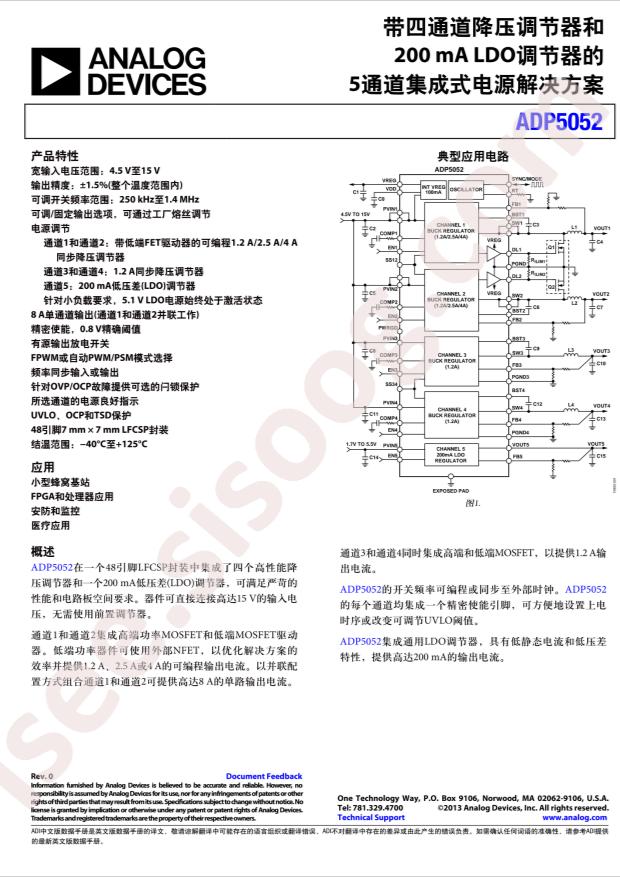

دانلود دیتاشیت ADP5052 Datasheet	ADP5052 Datasheet Datasheet

RoHS: true
Category: Power Supply Chip/DC-DC Converters
Datasheet: Analog Devices ADP5052ACPZ-R7
Input Voltage: 4.5V~15V
Number of Outputs: 5
Switching Frequency: 740kHz
Operating Temperature: -40°C~+125°C
Package: LFCSP-48(7x7)
Manufacturer: Analog Devices
Series: -
Packaging: Cut Tape (CT)
Part Status: Active
Topology: Step-Down (Buck) Synchronous (4), Linear (LDO) (1)
Frequency - Switching: 740kHz
Voltage/Current - Output 1: 0.85V ~ 1.6V, PROG
Voltage/Current - Output 2: 3.3V ~ 5V, PROG
Voltage/Current - Output 3: 1.2V ~ 1.8V, 1.2A
w/LED Driver: No
w/Supervisor: No
w/Sequencer: No
Voltage - Supply: 4.5V ~ 15V
Mounting Type: Surface Mount
Package / Case: 48-WFQFN Exposed Pad, CSP
Supplier Device Package: 48-LFCSP-WQ (7x7)
Base Part Number: ADP5052
detail: PMIC - Voltage Regulators - Linear + Switching 5 Output Step-Down (Buck) Synchronous (4), Linear (LDO) (1) 740kHz 48-LFCSP-WQ (7x7)
