TPS22949AYZPR دیتاشیت

TPS22949AYZPR

مشخصات دیتاشیت

نام دیتاشیت TPS22949AYZPR
حجم فایل 114.264 کیلوبایت
نوع فایل pdf
تعداد صفحات 35

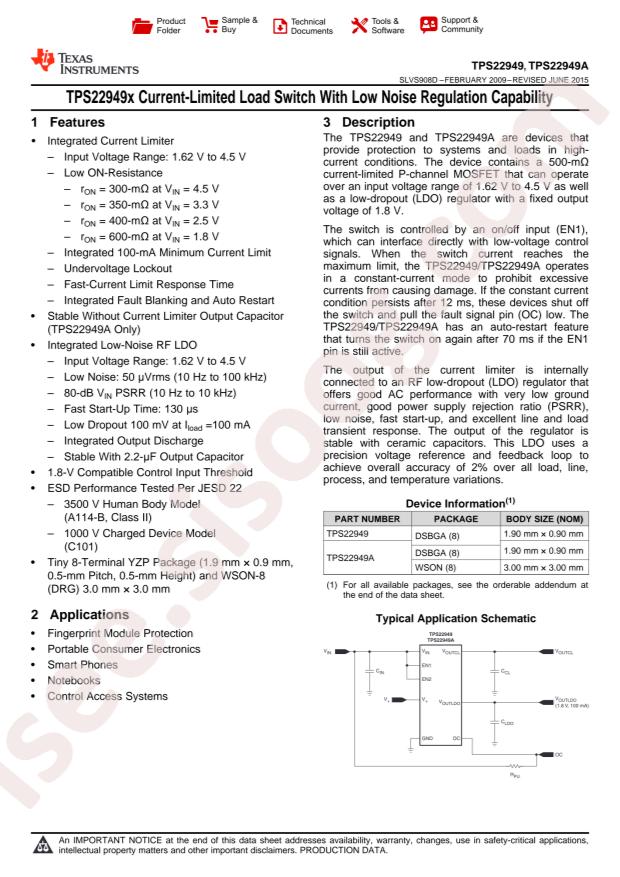

مشاهده دیتاشیت TPS22949AYZPR

دانلود دیتاشیت

سایر مستندات

TPS22949(A) 35 pages

مشخصات فنی

  • RoHS: true
  • Category: Power Supply Chip/Power Distribution Switches
  • Datasheet: Texas Instruments TPS22949AYZPR
  • Input Voltage: 1.62V~4.5V
  • Output Current: 100mA
  • Number of Outputs: 2
  • Resistor On-State: 300mΩ
  • Operating Temperature -: -40°C~+105°C
  • Package: DSBGA-8(1.9x1.9)
  • Manufacturer: Texas Instruments
  • Voltage - Supply (Vcc/Vdd): Not Required
  • Base Part Number: TPS229
  • Operating Temperature: -40°C ~ 105°C (TJ)
  • Package / Case: 8-XFBGA, DSBGA
  • Ratio - Input:Output: 1:1
  • Current - Output (Max): 100mA
  • Voltage - Load: 1.62V ~ 4.5V
  • Series: -
  • Rds On (Typ): 300mOhm
  • Supplier Device Package: 8-DSBGA, 8-WCSP (1.9x0.9)
  • Fault Protection: Current Limiting (Fixed), Over Temperature
  • Output Configuration: High Side
  • Part Status: Discontinued at Digi-Key
  • Mounting Type: Surface Mount
  • Interface: On/Off
  • Switch Type: General Purpose
  • Packaging: Cut Tape (CT)
  • Input Type: Non-Inverting
  • Features: Auto Restart, Load Discharge
  • Output Type: P-Channel
  • detail: Power Switch/Driver 1:1 P-Channel 100mA 8-DSBGA, 8-WCSP (1.9x0.9)
