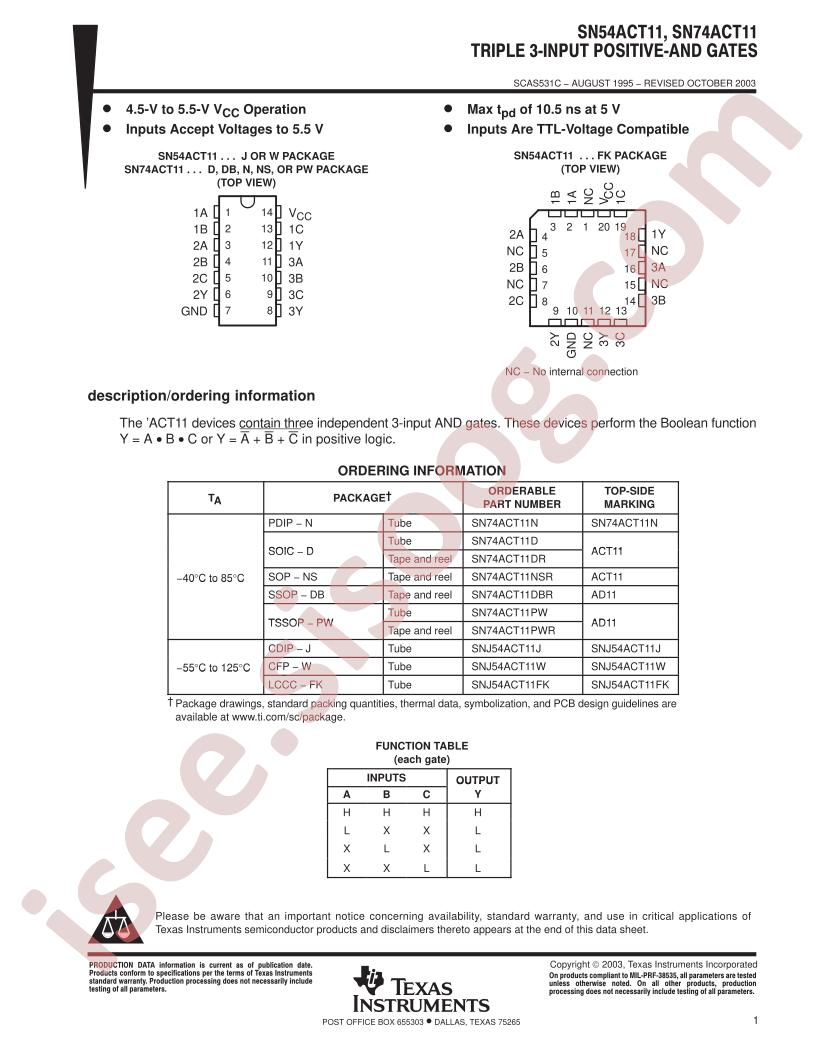

SN54/74ACT11 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
SN54/74ACT11
|
|
حجم فایل
|
1035.818
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
17
|
مشخصات فنی
-
RoHS:
true
-
Series:
74ACT
-
Category:
Logic ICs/Gates
-
Datasheet:
Texas Instruments SN74ACT11N
-
Sink Current:
24mA
-
Source Current:
24mA
-
Supply Voltage:
4.5V~5.5V
-
Logic Gate Type:
And
-
Number of Channels:
3
-
Low Level Range (VIL):
0.8V
-
Operating Temperature:
-40°C~+85°C
-
High Level Range (VIH):
2V
-
Propagation Delay Time:
9.5ns@5V,50pF
-
Quiescent Current (Max):
2uA
-
Package:
PDIP-14
-
Manufacturer:
Texas Instruments
-
Current - Quiescent (Max):
2µA
-
Package / Case:
14-DIP (0.300", 7.62mm)
-
Logic Level - High:
2V
-
Number of Circuits:
3
-
Number of Inputs:
3
-
Features:
-
-
Current - Output High, Low:
24mA, 24mA
-
Mounting Type:
Through Hole
-
Supplier Device Package:
14-PDIP
-
Logic Type:
AND Gate
-
Max Propagation Delay @ V, Max CL:
9.5ns @ 5V, 50pF
-
Voltage - Supply:
4.5V ~ 5.5V
-
Packaging:
Tube
-
Base Part Number:
SN74ACT1
-
Part Status:
Active
-
Logic Level - Low:
0.8V
-
detail:
AND Gate IC 3 Channel 14-PDIP
