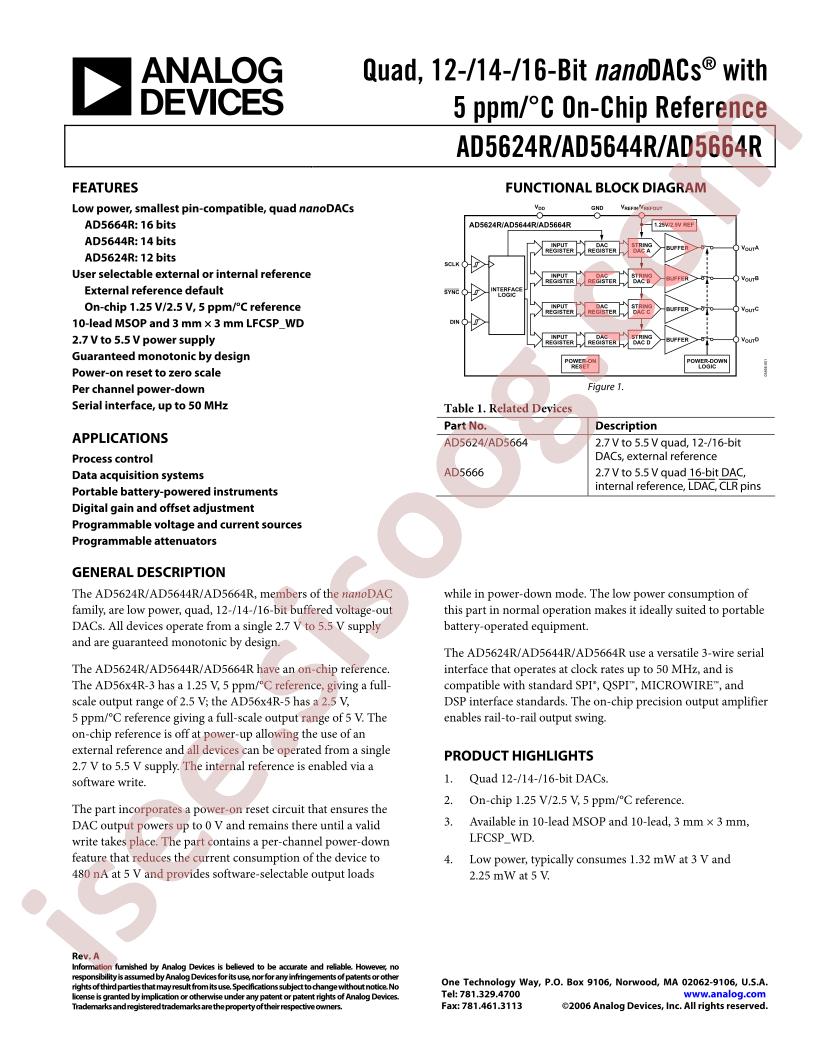

AD5624RBCPZ-3REEL7 数据手册
其他文档
AD5624R/44R/64R 28 pages
AD5644RBRMZ-5REEL7 28 pages
技术规格
- RoHS: true
- Category: ADC/DAC/Data Conversion/Digital To Analog Converters (DACs)
- Datasheet: Analog Devices AD5624RBCPZ-3REEL7
- Interface: SPI;DSP
- Resolution: 12Bit
- Output Type: Voltage-缓冲
- Settling Time: 4.5us
- Supply Voltage: 2.7V~3.6V
- Integral nonlinearity: ±0.5LSB;±0.25LSB
- Operating Temperature: -40°C~+105°C
- Package: LFCSP-10
- Manufacturer: Analog Devices
- Series: nanoDAC®
- Packaging: Cut Tape (CT)
- Part Status: Active
- Number of Bits: 12
- Number of D/A Converters: 4
- Differential Output: No
- Data Interface: SPI, DSP
- Reference Type: External, Internal
- Voltage - Supply, Analog: 2.7V ~ 3.6V
- Voltage - Supply, Digital: 2.7V ~ 3.6V
- INL/DNL (LSB): ±0.5, ±0.25 (Max)
- Architecture: String DAC
- Package / Case: 10-VFDFN Exposed Pad, CSP
- Supplier Device Package: 10-LFCSP-WD (3x3)
- Mounting Type: Surface Mount
- Base Part Number: AD5624
- detail: 12 Bit Digital to Analog Converter 4 10-LFCSP-WD (3x3)
