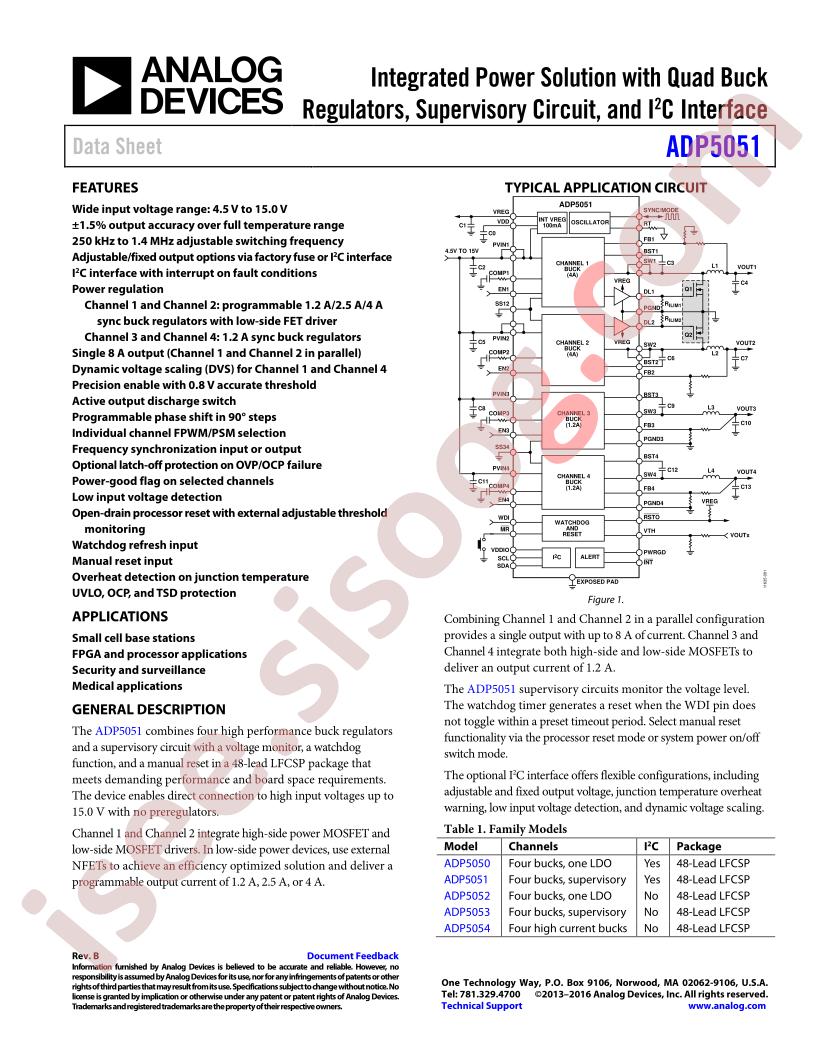

ADP505x Datasheet دیتاشیت

مشخصات دیتاشیت

مشاهده دیتاشیت ADP505x Datasheet	دانلود دیتاشیت

RoHS: true
Category: Power Supply Chip/DC-DC Controllers
Function: Step-down type
Topology: Step-down
Datasheet: Analog Devices ADP5051ACPZ-R7
Input Voltage: 4.5V~15V
Duty Cycle (Max): 50%
Number of Outputs: 4
Switching Frequency: 1.4MHz
Operating Temperature: -40°C~+125°C@(TJ)
Synchronous Rectification: Yes
Package: LFCSP-48
Manufacturer: Analog Devices
Series: -
Packaging: Cut Tape (CT)
Part Status: Active
Output Type: Transistor Driver
Output Configuration: Positive
Output Phases: 4
Voltage - Supply (Vcc/Vdd): 4.5V ~ 15V
Frequency - Switching: 250kHz ~ 1.4MHz
Synchronous Rectifier: Yes
Clock Sync: Yes
Serial Interfaces: I²C
Control Features: Enable, Frequency Control, Power Good, Soft Start, Watchdog
Mounting Type: Surface Mount
Package / Case: 48-WFQFN Exposed Pad, CSP
Supplier Device Package: 48-LFCSP-WQ (7x7)
Base Part Number: ADP5051
detail: Buck Regulator Positive Output Step-Down I²C DC-DC Controller IC 48-LFCSP-WQ (7x7)
