ADUM5404ARWZ-RL 数据手册
其他文档

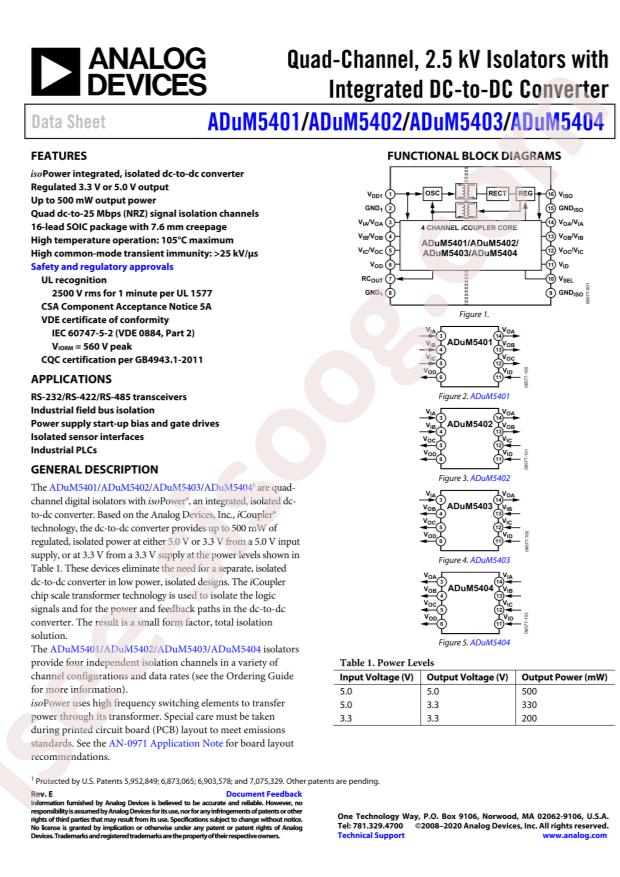

ADuM5401-04 29 pages
技术规格
- RoHS: true
- Category: Communication Interface Chip/UART/485/232/Digital Isolators
- Data Rate: 1Mbps
- Datasheet: Analog Devices ADUM5404ARWZ-RL
- Applications: General-purpose
- Supply Voltage: 3V~5.5V
- Forward Channel: 0
- Reverse channel: 4
- Number of Channels: 4
- Isolation Technology: Magnetic isolation
- Operating Temperature: -40°C~+105°C
- Voltage Isolation or Not: 带电压隔离
- Package: SOP-16-300mil
- Manufacturer: Analog Devices
- Series: IsoPower®, iCoupler®
- Packaging: Cut Tape (CT)
- Part Status: Active
- Technology: Magnetic Coupling
- Type: General Purpose
- Isolated Power: Yes
- Inputs - Side 1/Side 2: 0/4
- Channel Type: Unidirectional
- Voltage - Isolation: 2500Vrms
- Common Mode Transient Immunity (Min): 25kV/µs
- Propagation Delay tpLH / tpHL (Max): 100ns, 100ns
- Pulse Width Distortion (Max): 40ns
- Rise / Fall Time (Typ): 2.5ns, 2.5ns
- Voltage - Supply: 3V ~ 5.5V
- Mounting Type: Surface Mount
- Package / Case: 16-SOIC (0.295", 7.50mm Width)
- Supplier Device Package: 16-SOIC
- Base Part Number: ADUM5404
- detail: General Purpose Digital Isolator 2500Vrms 4 Channel 1Mbps 25kV/µs CMTI 16-SOIC (0.295", 7.50mm Width)
