دیتاشیت ADP1761ACPZ-R7
مشخصات دیتاشیت
| نام دیتاشیت | ADP1761 Datasheet |
|---|---|
| حجم فایل | 793.547 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 18 |
دانلود دیتاشیت ADP1761 Datasheet |

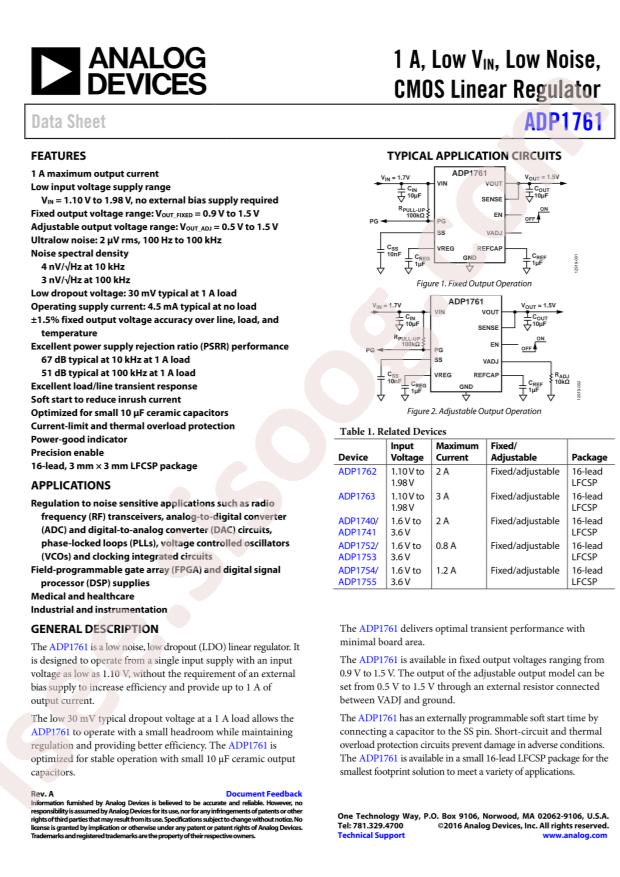

ADP1761 Datasheet Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/Linear Voltage Regulators (LDO)
- Datasheet: Analog Devices ADP1761ACPZ-R7
- Output Type: Adjustable
- Output Current: 1A
- Output Voltage: 0.5V~1.5V
- Dropout Voltage: 53mV@(1A)
- Output Polarity: Positive
- Number of Outputs: 1
- Maximum Input Voltage: 1.98V
- Operating Temperature: -40°C~+125°C@(Tj)
- Quiescent Current (Ground Current): 8mA
- Power Supply Rejection Ratio (PSRR): 67dB@(10kHz),35dB@(1MHz)
- Package: LFCSP-16
- Manufacturer: Analog Devices
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Active
- Output Configuration: Positive
- Number of Regulators: 1
- Voltage - Input (Max): 1.98V
- Voltage - Output (Min/Fixed): 0.5V
- Voltage - Output (Max): 1.5V
- Voltage Dropout (Max): 0.053V @ 1A
- Current - Output: 1A
- Current - Quiescent (Iq): 8mA
- Current - Supply (Max): 11mA
- PSRR: 67dB ~ 35dB (10kHz ~ 1MHz)
- Control Features: Enable, Power Good, Soft Start
- Protection Features: Current Limit, Thermal Overload
- Mounting Type: Surface Mount
- Package / Case: 16-WFQFN Exposed Pad
- Supplier Device Package: 16-LFCSP-WQ (3x3)
- Base Part Number: ADP1761
- detail: Linear Voltage Regulator IC 1 Output 1A 16-LFCSP-WQ (3x3)
