UCD7232RTJR دیتاشیت

UCD7232RTJR

مشخصات دیتاشیت

نام دیتاشیت UCD7232RTJR
حجم فایل 95.554 کیلوبایت
نوع فایل pdf
تعداد صفحات 33

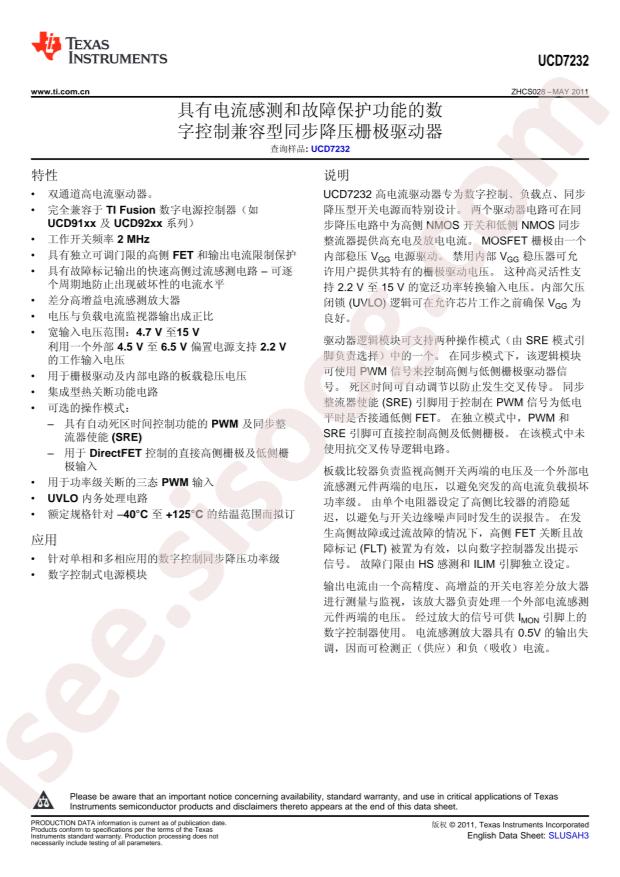

مشاهده دیتاشیت UCD7232RTJR

دانلود دیتاشیت

سایر مستندات

UCD7232 31 pages

مشخصات فنی

  • RoHS: true
  • Category: Power Supply Chip/Gate Drive ICs
  • Datasheet: Texas Instruments UCD7232RTJR
  • Fall Time: 21ns
  • Load Type: MOSFET
  • Rise Time: 27ns
  • Supply Voltage: 4.7V~15V
  • Number of Drivers: 2
  • Driven Configuration: Half Bridge
  • Operating Temperature: -40°C~+125°C@(Tj)
  • Peak Output Current(sink): 4A
  • Peak Output Current(source): 4A
  • Package: QFN-20-EP(4x4)
  • Manufacturer: Texas Instruments
  • Series: -
  • Package / Case: 20-WFQFN Exposed Pad
  • Current - Peak Output (Source, Sink): 4A, 4A
  • Base Part Number: UCD723
  • Channel Type: Synchronous
  • Rise / Fall Time (Typ): 27ns, 21ns
  • Part Status: Active
  • Mounting Type: Surface Mount
  • Logic Voltage - VIL, VIH: 0.8V, 2V
  • Gate Type: N-Channel MOSFET
  • Voltage - Supply: 4.7V ~ 15V
  • Packaging: Cut Tape (CT)
  • Input Type: Non-Inverting
  • Supplier Device Package: 20-QFN (4x4)
  • detail: Half-Bridge Gate Driver IC Non-Inverting 20-QFN (4x4)
