دیتاشیت AT89C5131A-PUTUM
مشخصات دیتاشیت
| نام دیتاشیت | AT89C5130/31A-M |
|---|---|
| حجم فایل | 1840.644 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 188 |
دانلود دیتاشیت AT89C5130/31A-M |

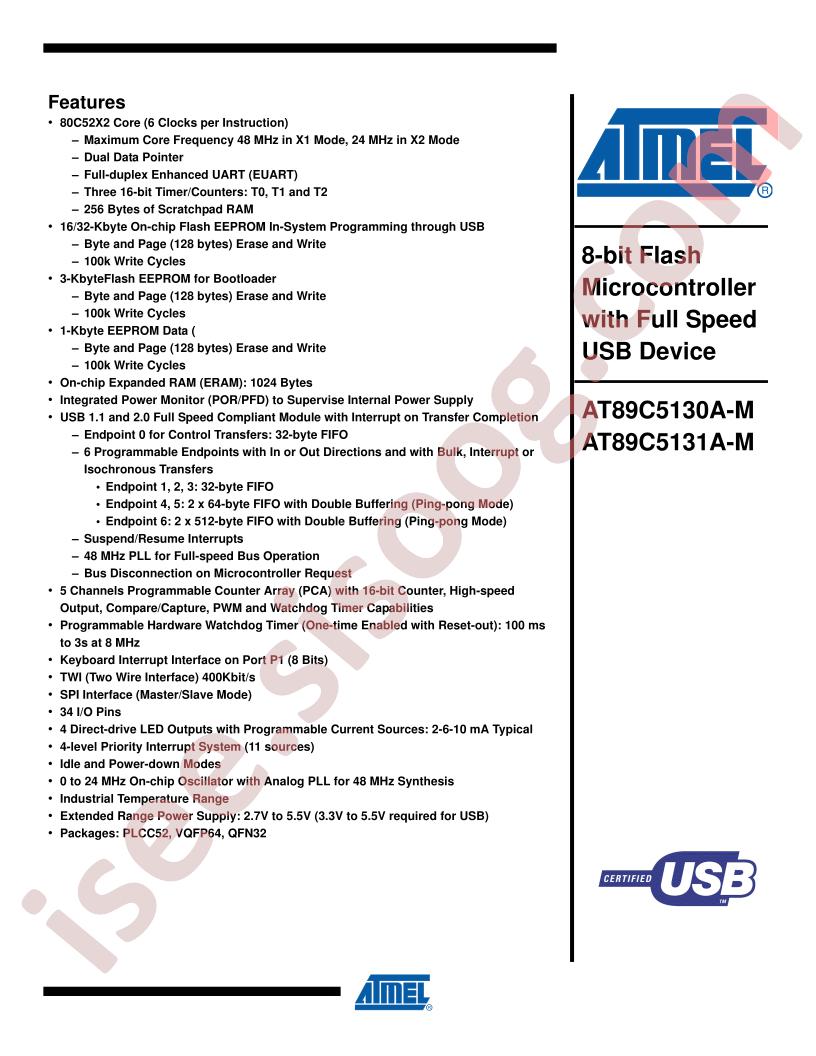

AT89C5130/31A-M Datasheet |
|---|
مشخصات
- RoHS: true
- EEPROM: -
- CPU Core: 51Series
- Category: Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
- RAM Size: 1.25KB
- Watchdog: Yes
- ADC (Bit): -
- DAC (Bit): -
- Datasheet: Microchip Tech AT89C5131A-PUTUM
- PWM (Bit): -
- LED Module: Yes
- Real-Time Clock: -
- CPU Maximum Speed: 48MHz
- GPIO Ports Number: 18
- Low-Voltage Detect: Yes
- CCP Capture/Compare: -
- Internal Comparator: -
- Internal Oscillator: Yes
- Peripheral/Function: PWM;WDT
- Program Memory Type: FLASH
- Direct Memory Access: -
- Program Storage Size: 32KB
- Universal Serial Bus: Yes
- communication protocol: -
- Operating Voltage Range: 2.7V~5.5V
- Infrared Data Association: -
- Operating Temperature Range: -40°C~+85°C
- Secure Digital Input and Output: -
- Package: QFN-32-EP(7x7)
- Manufacturer: Microchip Tech
- Series: AT89C513x
- Packaging: Tray
- Part Status: Active
- Core Processor: 80C51
- Core Size: 8-Bit
- Speed: 48MHz
- Connectivity: I²C, SPI, UART/USART, USB
- Peripherals: LED, POR, PWM, WDT
- Number of I/O: 18
- Program Memory Size: 32KB (32K x 8)
- EEPROM Size: 4K x 8
- Voltage - Supply (Vcc/Vdd): 2.7V ~ 5.5V
- Data Converters: -
- Oscillator Type: Internal
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 32-VQFN Exposed Pad
- Supplier Device Package: 32-QFN (7x7)
- Base Part Number: AT89C5131
- detail: 80C51 AT89C513x Microcontroller IC 8-Bit 48MHz 32KB (32K x 8) FLASH 32-QFN (7x7)
