AD5424,33,45 Datasheet

AD5424,33,45

Datasheet specifications

Datasheet's name AD5424,33,45
File size 710.298 KB
File type pdf
Number of pages 28

Download Datasheet AD5424,33,45

Download Datasheet

Other documentations

20-TSSOP Pkg Drawing 1 pages

AD5433YRUZ 28 pages

Technical specifications

  • RoHS: true
  • Category: ADC/DAC/Data Conversion/Digital To Analog Converters (DACs)

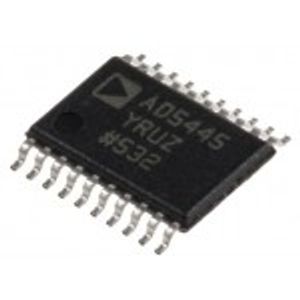

  • Datasheet: Analog Devices AD5445YRUZ-REEL7
  • Interface: Parallel
  • Resolution: 12Bit
  • Output Type: Current-非缓冲
  • Settling Time: 120ns
  • Supply Voltage: 2.5V~5.5V
  • Operating Temperature: -40°C~+125°C
  • Package: TSSOP-20
  • Manufacturer: Analog Devices
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Number of Bits: 12
  • Number of D/A Converters: 1
  • Differential Output: Yes
  • Data Interface: Parallel
  • Reference Type: External
  • Voltage - Supply, Analog: 2.5V ~ 5.5V
  • Voltage - Supply, Digital: 2.5V ~ 5.5V
  • INL/DNL (LSB): ±1 (Max), -1/+2 (Max)
  • Architecture: R-2R
  • Package / Case: 20-TSSOP (0.173", 4.40mm Width)
  • Supplier Device Package: 20-TSSOP
  • Mounting Type: Surface Mount
  • Base Part Number: AD5445
  • detail: 12 Bit Digital to Analog Converter 1 20-TSSOP
