دیتاشیت MIC29500-5.0WT

مشخصات دیتاشیت

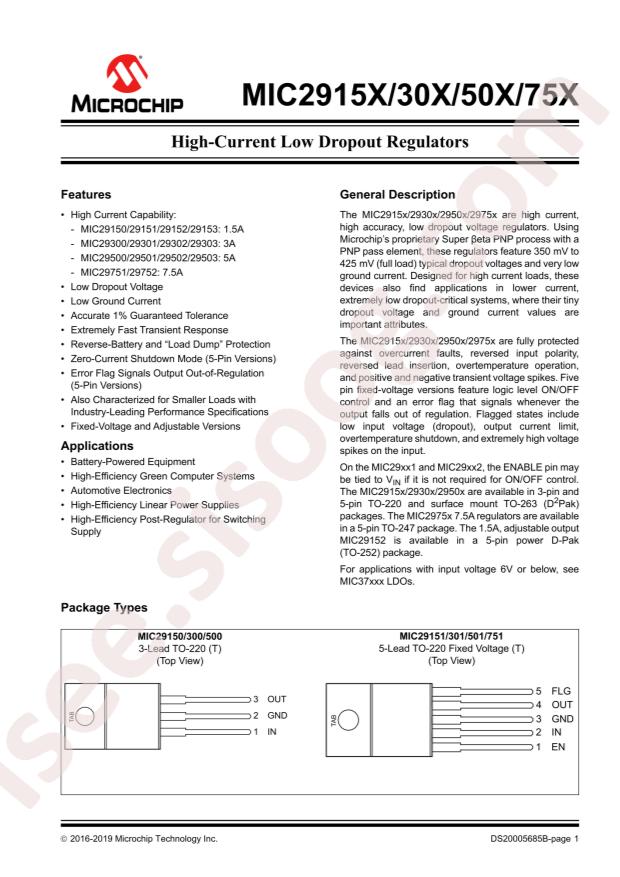

دانلود دیتاشیت MIC29150, MIC29300, MIC29500, MIC29750	MIC29150, MIC29300, MIC29500, MIC29750 Datasheet

RoHS: true
Category: Power Supply Chip/Linear Voltage Regulators (LDO)
Datasheet: Microchip Tech MIC29500-5.0WT
Output Current: 5A
Output Voltage: 5V
Dropout Voltage: 0.6V@(5A)
Output Polarity: positive
Number of Outputs: 1
Maximum Input Voltage: 26V
Operating Temperature: -40°C~+125°C
Package: TO-220
Manufacturer: Microchip Tech
Series: -
Packaging: Tube
Part Status: Active
Output Configuration: Positive
Output Type: Fixed
Number of Regulators: 1
Voltage - Input (Max): 26V
Voltage - Output (Min/Fixed): 5V
Voltage - Output (Max): -
Voltage Dropout (Max): 0.6V @ 5A
Current - Output: 5A
PSRR: -
Control Features: -
Protection Features: Over Current, Over Temperature, Reverse Polarity, Transient Voltage
Mounting Type: Through Hole
Package / Case: TO-220-3
Supplier Device Package: TO-220-3
Base Part Number: MIC29500-5.0
detail: Linear Voltage Regulator IC 1 Output 5A TO-220-3
