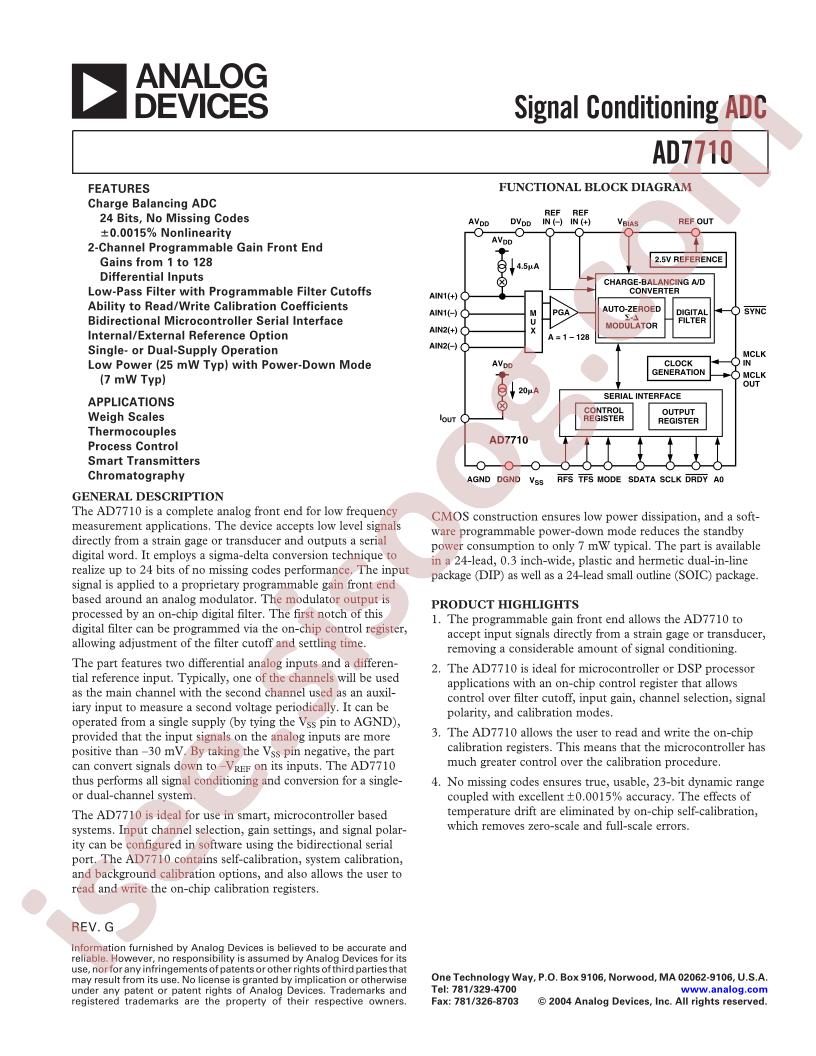

AD7710 数据手册
其他文档
AD7710ANZ 32 pages
技术规格
- RoHS: true
- Category: ADC/DAC/Data Conversion/Analog To Digital Converters (ADCs)
- Datasheet: Analog Devices AD7710ARZ-REEL7
- Interface: SPI
- resolution: 24Bit
- Supply Voltage: 5V~10V
- differential input: Yes
- number of channels: 2
- sampling frequency: 1kHz
- Operating Temperature: -40°C~+85°C
- Package: SOP-24-300mil
- Manufacturer: Analog Devices
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Active
- Number of Bits: 24
- Sampling Rate (Per Second): 1k
- Number of Inputs: 2
- Input Type: Differential
- Data Interface: SPI
- Configuration: MUX-PGA-ADC
- Ratio - S/H:ADC: -
- Number of A/D Converters: 1
- Architecture: Sigma-Delta
- Reference Type: External, Internal
- Voltage - Supply, Analog: 5V ~ 10V
- Voltage - Supply, Digital: 5V
- Features: PGA
- Package / Case: 24-SOIC (0.295", 7.50mm Width)
- Supplier Device Package: 24-SOIC
- Mounting Type: Surface Mount
- Base Part Number: AD7710
- detail: 24 Bit Analog to Digital Converter 2 Input 1 Sigma-Delta 24-SOIC
