دیتاشیت AD9248BSTZ-20

AD9248

مشخصات دیتاشیت

نام دیتاشیت AD9248
حجم فایل 1294.486 کیلوبایت
نوع فایل pdf
تعداد صفحات 48

دانلود دیتاشیت AD9248

AD9248 Datasheet

مشخصات

  • Manufacturer: Analog Devices Inc.
  • Series: -
  • Packaging: Tray
  • Part Status: Active
  • Number of Bits: 14
  • Sampling Rate (Per Second): 20M
  • Number of Inputs: 2
  • Input Type: Differential, Single Ended
  • Data Interface: Parallel
  • Configuration: S/H-ADC
  • Ratio - S/H:ADC: 1:1
  • Number of A/D Converters: 1
  • Architecture: Pipelined
  • Reference Type: External, Internal
  • Voltage - Supply, Analog: 2.7V ~ 3.6V
  • Voltage - Supply, Digital: 2.25V ~ 3.6V
  • Features: Simultaneous Sampling
  • Operating Temperature: -40°C ~ 85°C

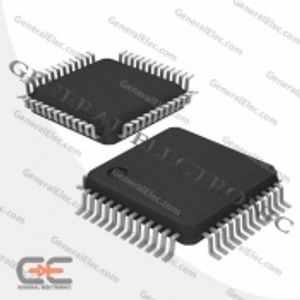

  • Package / Case: 64-LQFP
  • Supplier Device Package: 64-LQFP (7x7)
  • Mounting Type: Surface Mount
  • Base Part Number: AD9248
  • detail: 14 Bit Analog to Digital Converter 2 Input 1 Pipelined 64-LQFP (7x7)
