دیتاشیت MIC23050-4YML-TR
مشخصات دیتاشیت
| نام دیتاشیت | MIC23050 Datasheet |
|---|---|
| حجم فایل | 840.109 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 15 |

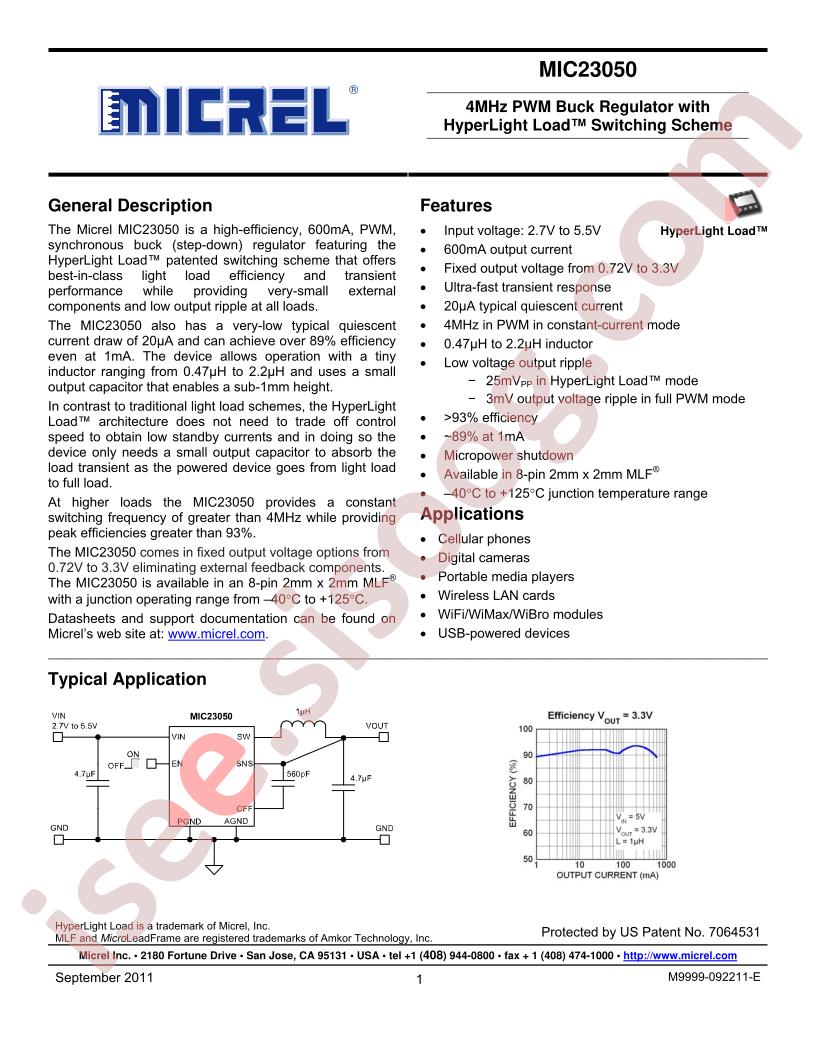

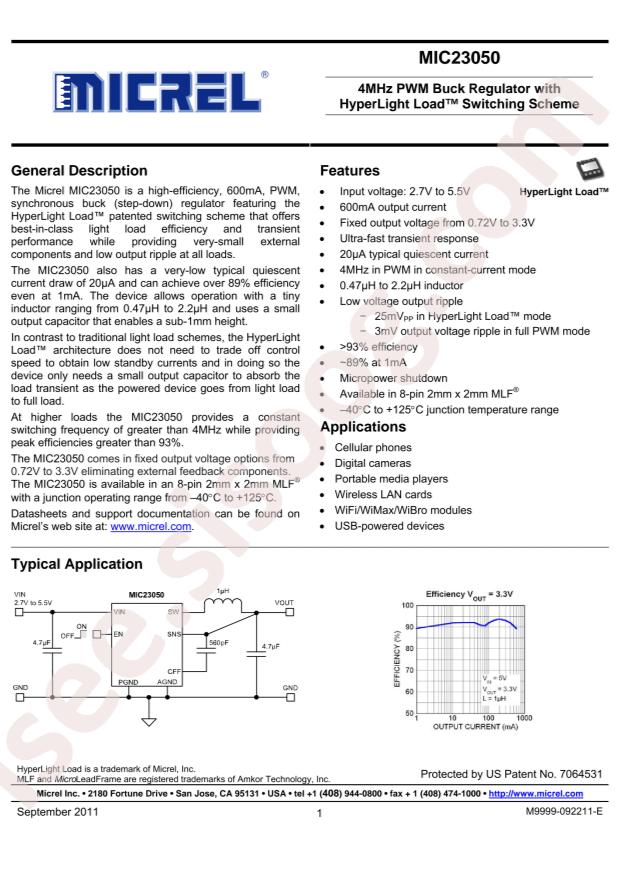

دانلود دیتاشیت MIC23050 Datasheet |
MIC23050 Datasheet Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/DC-DC Converters
- Function: Step-down type
- Topology: Step-down
- Datasheet: Microchip Tech MIC23050-4YML-TR
- Output Type: Fixed
- Input Voltage: 2.7V~5.5V
- Output Voltage: 1.2V
- Number of Outputs: 1
- Switching Frequency: 4MHz
- Output Current (Max): 600mA
- Operating Temperature: -40°C~+125°C@(TJ)
- Synchronous Rectification: Yes
- Package: MLF-8
- Manufacturer: Microchip Tech
- Series: HyperLight Load®
- Packaging: Cut Tape (CT)
- Part Status: Active
- Output Configuration: Positive
- Voltage - Input (Min): 2.7V
- Voltage - Input (Max): 5.5V
- Voltage - Output (Min/Fixed): 1.2V
- Voltage - Output (Max): -
- Current - Output: 600mA
- Frequency - Switching: 4MHz
- Synchronous Rectifier: Yes
- Mounting Type: Surface Mount
- Package / Case: 8-VFDFN Exposed Pad, 8-MLF®
- Supplier Device Package: 8-MLF® (2x2)
- Base Part Number: MIC23050
- detail: Buck Switching Regulator IC Positive Fixed 1.2V 1 Output 600mA 8-VFDFN Exposed Pad, 8-MLF®
