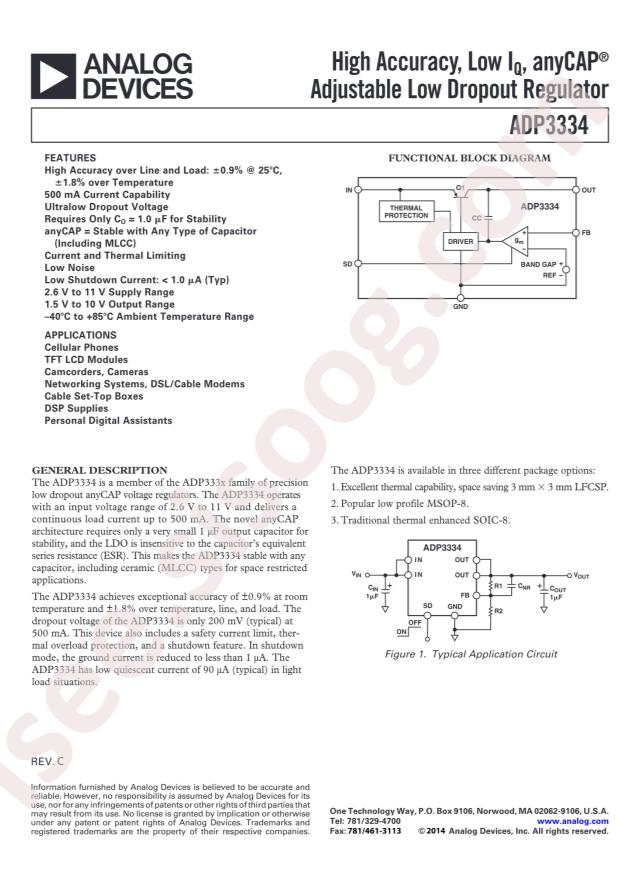

ADP3334ARMZ-REEL7 دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | ADP3334ARMZ-REEL7 |
|---|---|
| حجم فایل | 83.252 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 12 |
دانلود دیتاشیت ADP3334ARMZ-REEL7 |
دانلود دیتاشیت |
|---|
سایر مستندات
ADP3334 11 pages
مشخصات فنی
- RoHS: true
- Category: Power Supply Chip/Linear Voltage Regulators (LDO)
- Datasheet: Analog Devices ADP3334ARMZ-REEL7
- Output Type: Adjustable
- Output Current: 500mA
- Output Voltage: 1.5V~10V
- Dropout Voltage: 400mV@(500mA)
- Output Polarity: Positive
- Number of Outputs: 1
- Maximum Input Voltage: 11V
- Operating Temperature: -40°C~+85°C@(Ta)
- Quiescent Current (Ground Current): 130uA
- Power Supply Rejection Ratio (PSRR): -

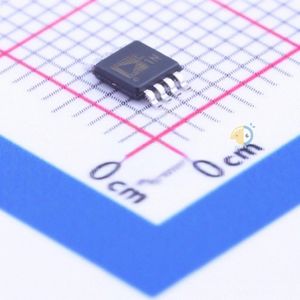

- Package: MSOP-8
- Manufacturer: Analog Devices
- Series: anyCAP®
- Packaging: Cut Tape (CT)
- Part Status: Active
- Output Configuration: Positive
- Number of Regulators: 1
- Voltage - Input (Max): 11V
- Voltage - Output (Min/Fixed): 1.5V
- Voltage - Output (Max): 10V
- Voltage Dropout (Max): 0.4V @ 500mA
- Current - Output: 500mA
- Current - Quiescent (Iq): 130µA
- Current - Supply (Max): 10mA
- PSRR: -
- Control Features: Enable
- Protection Features: Over Current, Over Temperature
- Mounting Type: Surface Mount
- Package / Case: 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
- Supplier Device Package: 8-MSOP
- Base Part Number: ADP3334
- detail: Linear Voltage Regulator IC 1 Output 500mA 8-MSOP
