ADP3303ARZ-5 دیتاشیت

ADP3303ARZ-5

مشخصات دیتاشیت

نام دیتاشیت ADP3303ARZ-5
حجم فایل 107.381 کیلوبایت
نوع فایل pdf
تعداد صفحات 16

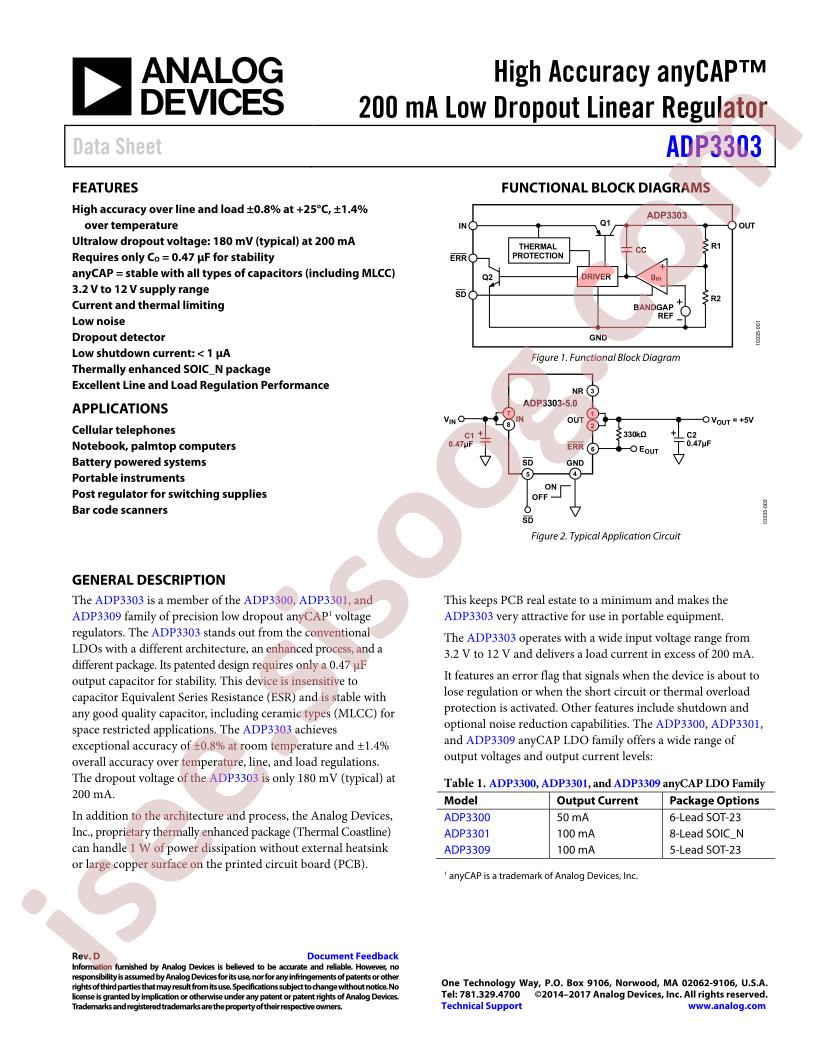

دانلود دیتاشیت ADP3303ARZ-5

دانلود دیتاشیت

سایر مستندات

ADP3303 16 pages

مشخصات فنی

  • RoHS: true
  • Category: Power Supply Chip/Linear Voltage Regulators (LDO)
  • Datasheet: Analog Devices ADP3303ARZ-3.3-RL7
  • Output Current: 200mA
  • Output Voltage: 3.3V
  • Dropout Voltage: 0.4V@(200mA)
  • Output Polarity: positive
  • Number of Outputs: 1
  • Maximum Input Voltage: 12V
  • Operating Temperature: -20°C~+85°C
  • Quiescent Current (Ground Current): 400uA
  • Package: SOIC-8
  • Manufacturer: Analog Devices
  • Series: anyCAP®
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Output Configuration: Positive
  • Output Type: Fixed
  • Number of Regulators: 1
  • Voltage - Input (Max): 12V
  • Voltage - Output (Min/Fixed): 3.3V
  • Voltage - Output (Max): -
  • Voltage Dropout (Max): 0.4V @ 200mA
  • Current - Output: 200mA
  • Current - Quiescent (Iq): 400µA
  • Current - Supply (Max): 4mA
  • PSRR: -
  • Control Features: Enable
  • Protection Features: Over Temperature
  • Mounting Type: Surface Mount
  • Package / Case: 8-SOIC (0.154", 3.90mm Width)
  • Supplier Device Package: 8-SOIC
  • Base Part Number: ADP3303
  • detail: Linear Voltage Regulator IC 1 Output 200mA 8-SOIC
