دیتاشیت ADG1204YRUZ-REEL7

مشخصات دیتاشیت

دانلود دیتاشیت ADG1204	ADG1204 Datasheet

RoHS: true
Category: Communication Interface Chip/UART/485/232/Analog Switches / Multiplexers

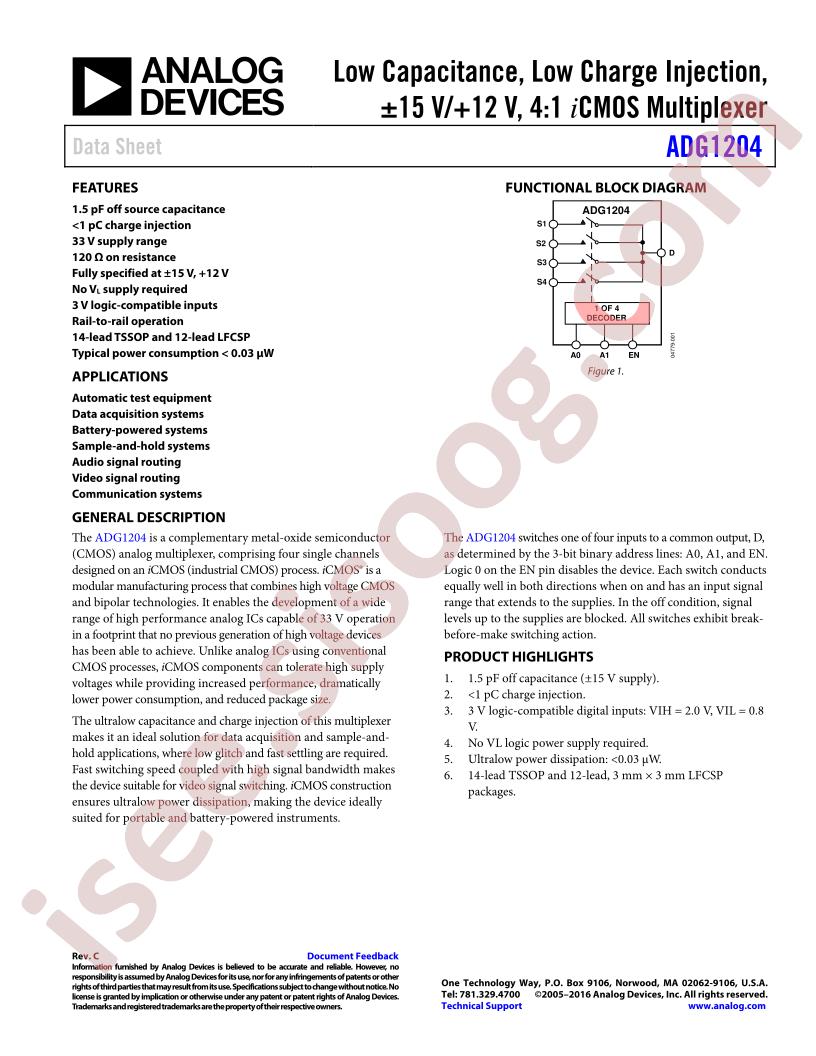

Datasheet: Analog Devices ADG1204YRUZ-REEL7
Turn-on time: 85ns
Turn-off time: 110ns
Supply Voltage: 12V
Switch Circuit: 单刀四掷(SP4T)
Number of Channels: 1
On-State Resistance (Max): 190Ω
Package: TSSOP-14
Manufacturer: Analog Devices
Series: -
Packaging: Cut Tape (CT)
Part Status: Active
Multiplexer/Demultiplexer Circuit: 4:1
Number of Circuits: 1
Channel-to-Channel Matching (ΔRon): 6Ohm
Voltage - Supply, Single (V+): 12V
Voltage - Supply, Dual (V±): ±15V
Switch Time (Ton, Toff) (Max): 85ns, 110ns
-3db Bandwidth: 800MHz
Charge Injection: -0.7pC
Channel Capacitance (CS(off), CD(off)): 1.5pF, 4.2pF
Current - Leakage (IS(off)) (Max): 100pA
Crosstalk: -80dB @ 1MHz
Operating Temperature: -40°C ~ 125°C (TA)
Mounting Type: Surface Mount
Package / Case: 14-TSSOP (0.173", 4.40mm Width)
Supplier Device Package: 14-TSSOP
Base Part Number: ADG1204
detail: 1 Circuit IC Switch 4:1 190Ohm 14-TSSOP
