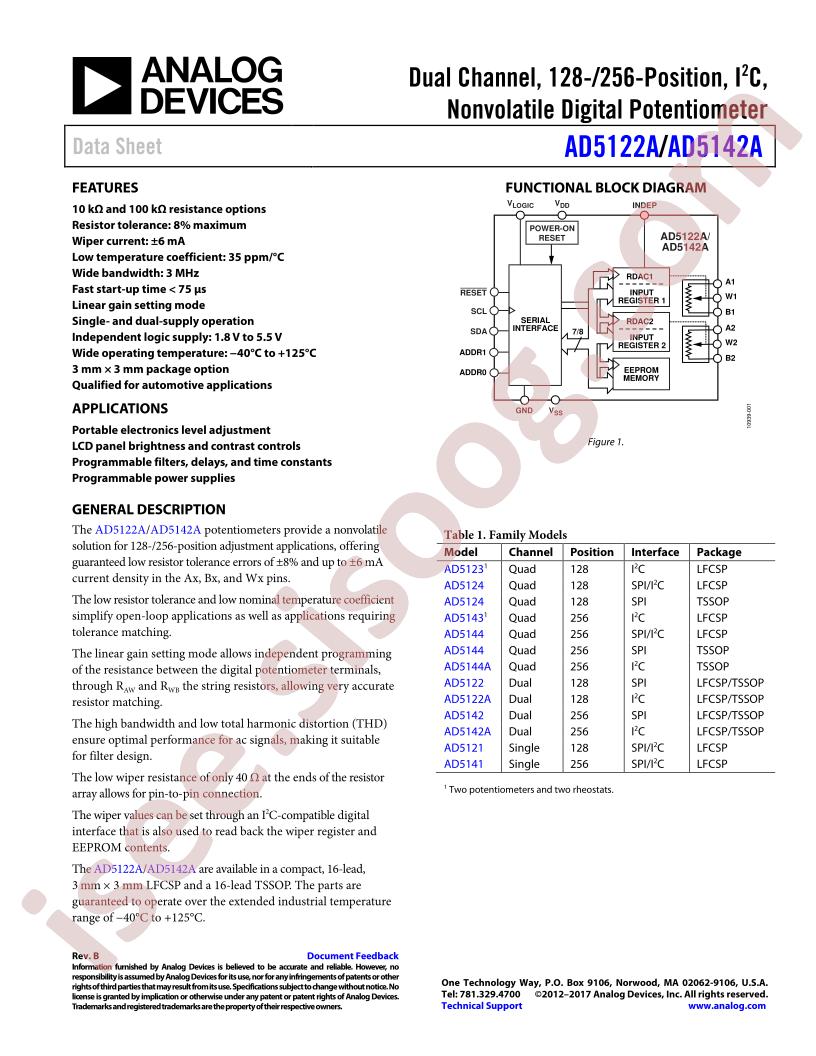

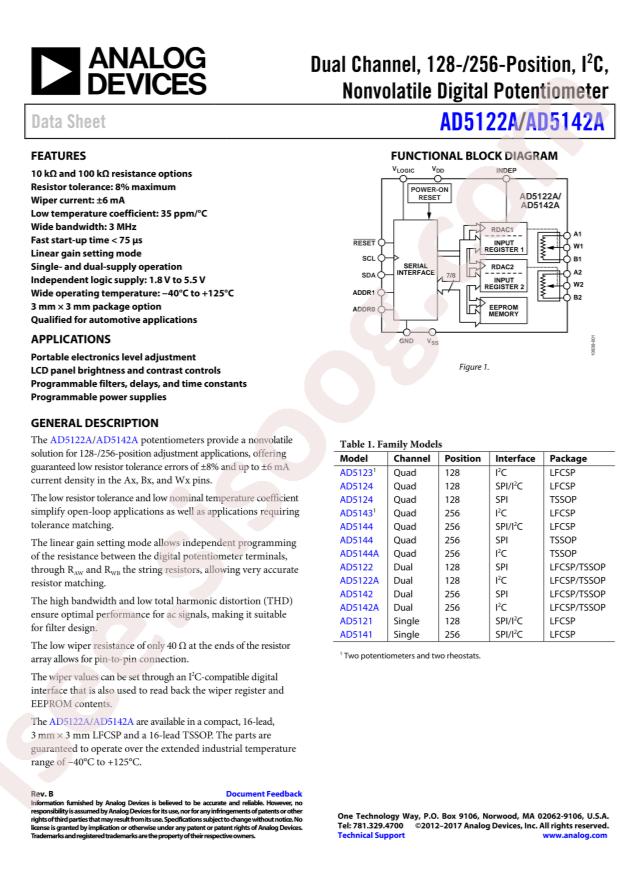

دیتاشیت AD5142ABRUZ100
مشخصات دیتاشیت
| نام دیتاشیت |
AD5122A,42A
|
| حجم فایل |
779.527
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
32
|
مشخصات
-
RoHS:
true
-
Category:
ADC/DAC/Data Conversion/Digital Potentiometers
-
Datasheet:
Analog Devices AD5142ABRUZ100
-
Precision:
±8%
-
Interface Type:
I2C
-
Number of Taps:
256
-
Supply Voltage:
2.3V~5.5V;2.25V~2.75V
-
Number of Channels:
2
-
Operating Temperature:
-40°C~+125°C
-
Resistance Value (Ohms):
100kΩ
-
Temperature Coefficient (Typ):
35ppm/°C
-
Package:
TSSOP-16
-
Manufacturer:
Analog Devices
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Active
-
Taper:
Linear
-
Configuration:
Potentiometer
-
Number of Circuits:
2
-
Resistance (Ohms):
10k
-
Interface:
I²C
-
Memory Type:
Non-Volatile
-
Voltage - Supply:
2.3V ~ 5.5V, ±2.25V ~ 2.75V
-
Features:
Selectable Address
-
Tolerance:
±8%
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
16-TSSOP
-
Package / Case:
16-TSSOP (0.173", 4.40mm Width)
-
Resistance - Wiper (Ohms) (Typ):
55
-
Base Part Number:
AD5142
-
detail:
Digital Potentiometer 10k Ohm 2 Circuit 256 Taps I²C Interface 16-TSSOP
