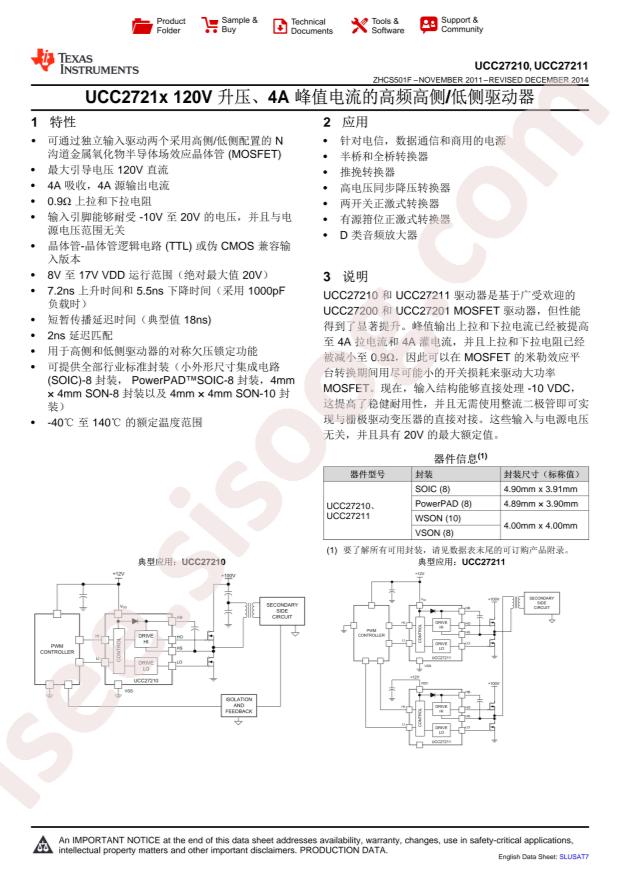

UCC27211DPRR دیتاشیت

UCC27211DPRR

مشخصات دیتاشیت

نام دیتاشیت UCC27211DPRR
حجم فایل 86.85 کیلوبایت
نوع فایل pdf
تعداد صفحات 42

دانلود دیتاشیت UCC27211DPRR

دانلود دیتاشیت

سایر مستندات

UCC27210,211 41 pages

مشخصات فنی

  • RoHS: true
  • Category: Power Supply Chip/Gate Drive ICs
  • Datasheet: Texas Instruments UCC27210DR
  • Fall Time: 5.5ns
  • Load Type: MOSFET
  • Rise Time: 7.2ns
  • Supply Voltage: 8V~17V
  • Number of Drivers: 2
  • Driven Configuration: Half Bridge
  • Operating Temperature: -40°C~+140°C@(Tj)
  • Peak Output Current(sink): 4A
  • Peak Output Current(source): 4A
  • Package: SOP-8
  • Manufacturer: Texas Instruments
  • Series: -
  • Package / Case: 8-SOIC (0.154", 3.90mm Width)
  • Current - Peak Output (Source, Sink): 4A, 4A
  • Base Part Number: UCC272
  • Channel Type: Independent
  • Rise / Fall Time (Typ): 7.2ns, 5.5ns
  • Part Status: Active
  • Mounting Type: Surface Mount
  • Logic Voltage - VIL, VIH: 2.4V, 5.8V
  • Gate Type: N-Channel MOSFET
  • Voltage - Supply: 8V ~ 17V
  • Packaging: Tape & Reel (TR)
  • Input Type: Non-Inverting
  • Supplier Device Package: 8-SOIC
  • High Side Voltage - Max (Bootstrap): 120V
  • detail: Half-Bridge Gate Driver IC Non-Inverting 8-SOIC
