TL1451AQPWRQ1 دیتاشیت

مشخصات دیتاشیت

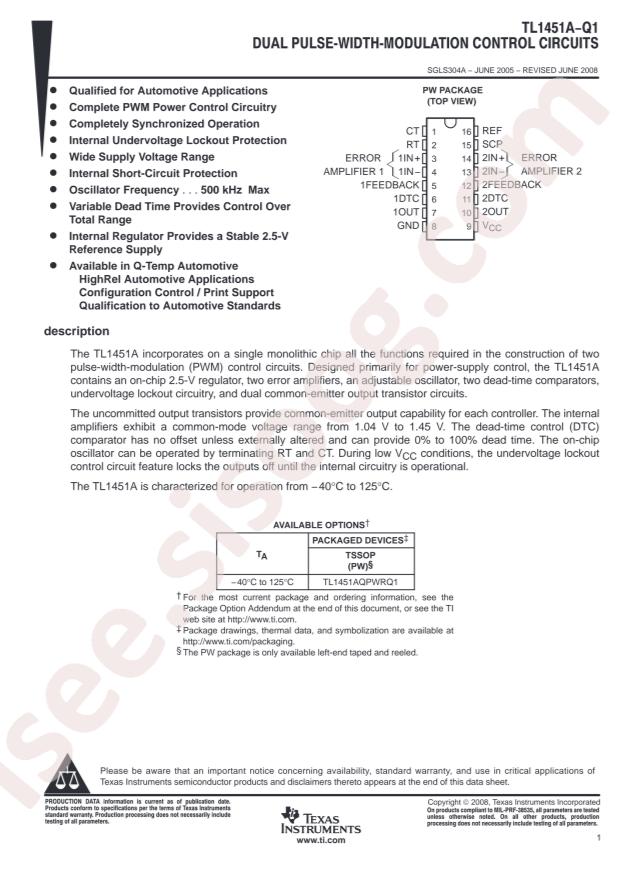

مشاهده دیتاشیت TL1451AQPWRQ1	دانلود دیتاشیت

RoHS: true
Category: Power Supply Chip/DC-DC Controllers
Function: boost converterType;Step-down type;Buck-boost type
Topology: Step-down;Boost;Flyback
Datasheet: Texas Instruments TL1451AQPWRQ1
Input Voltage: 3.6V~50V
Duty Cycle (Max): -
Number of Outputs: 2
Switching Frequency: 500kHz
Operating Temperature: -40°C~+125°C@(TJ)
Synchronous Rectification: NO
Package: TSSOP-16
Manufacturer: Texas Instruments
Voltage - Supply (Vcc/Vdd): 3.6V ~ 50V
Base Part Number: TL145
Package / Case: 16-TSSOP (0.173", 4.40mm Width)
Output Configuration: Positive
Series: Automotive, AEC-Q100
Supplier Device Package: 16-TSSOP
Frequency - Switching: 1kHz ~ 500kHz
Part Status: Active
Mounting Type: Surface Mount
Control Features: Frequency Control
Clock Sync: No
Serial Interfaces: -
Packaging: Cut Tape (CT)
Synchronous Rectifier: No
Output Type: Transistor Driver
Output Phases: 1
detail: Buck, Boost, Flyback Regulator Positive Output Step-Up, Step-Down, Step-Up/Step-Down DC-DC Controller IC 16-TSSOP
