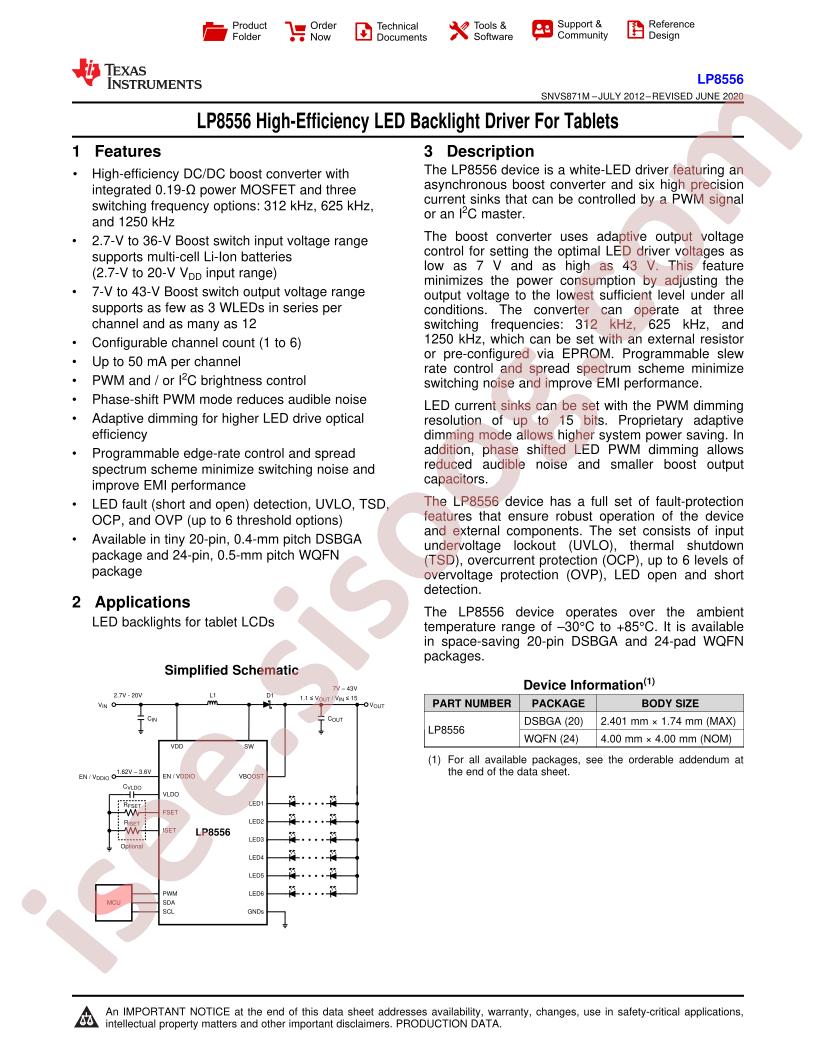

- دیتاشیت LP8556 Datasheet
LP8556 Datasheet دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | LP8556 Datasheet |
|---|---|
| حجم فایل | 1754.015 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 65 |
دانلود دیتاشیت LP8556 Datasheet |
دانلود دیتاشیت |
|---|
سایر مستندات
LP8556TMX-E11/NOPB 65 pages
مشخصات فنی
- RoHS: true
- Type: DC-DCVoltage Stabilizer
- Dimming: PWM
- Category: Nixie Tube Driver/LED Driver/LED Drivers
- Channels: 5
- Topology: boost converter
- Datasheet: Texas Instruments LP8556TMX-E06/NOPB
- Input Voltage: 2.7V~20V
- Output Current: 50mA
- Output Voltage: 7V~43V
- Switch Frequency: 312kHz;625kHz;1250kHz
- Operating temperature: -30°C~+85°C
- Package: BGA-20
- Manufacturer: Texas Instruments
- Series: -
- Package / Case: 20-WFBGA, DSBGA
- Frequency: 312kHz, 625kHz, 1250kHz
- Number of Outputs: 5
- Part Status: Active
- Mounting Type: Surface Mount
- Internal Switch(s): Yes
- Applications: Backlight
- Voltage - Supply (Min): 2.7V
- Current - Output / Channel: 25mA
- Voltage - Output: 16V ~ 39V
- Packaging: Cut Tape (CT)
- Base Part Number: LP8556
- Supplier Device Package: 20-DSBGA (2.04x1.78)
- Voltage - Supply (Max): 20V
- detail: LED Driver IC 5 Output DC DC Regulator Step-Up (Boost) PWM Dimming 25mA 20-DSBGA (2.04x1.78)
