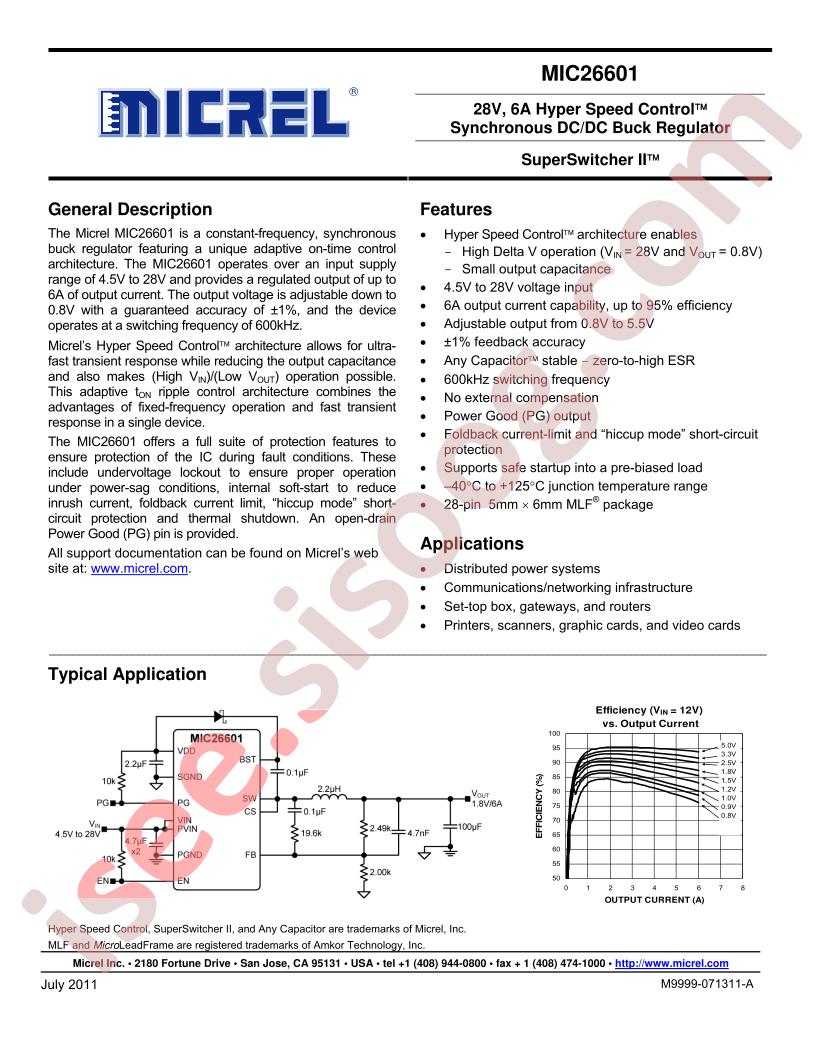

دیتاشیت MIC26601YJL-TR
مشخصات دیتاشیت
| نام دیتاشیت |
MIC26601
|
| حجم فایل |
1113.988
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
30
|
مشخصات
-
RoHS:
true
-
Category:
Power Supply Chip/DC-DC Converters
-
Function:
Step-down type
-
Topology:
Step-down
-
Datasheet:
Microchip Tech MIC26601YJL-TR
-
Output Type:
Adjustable
-
Input Voltage:
4.5V~28V
-
Output Voltage:
0.8V~5.5V
-
Number of Outputs:
1
-
Switching Frequency:
600kHz
-
Output Current (Max):
6A
-
Operating Temperature:
-40°C~+125°C@(TJ)
-
Synchronous Rectification:
Yes
-
Package:
MLF-28
-
Manufacturer:
Microchip Tech
-
Series:
Hyper Speed Control®, SuperSwitcher II™
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Output Configuration:
Positive
-
Voltage - Input (Min):
4.5V
-
Voltage - Input (Max):
28V
-
Voltage - Output (Min/Fixed):
0.8V
-
Voltage - Output (Max):
5.5V
-
Current - Output:
6A
-
Frequency - Switching:
600kHz
-
Synchronous Rectifier:
Yes
-
Mounting Type:
Surface Mount
-
Package / Case:
28-PowerVQFN
-
Supplier Device Package:
28-QFN (5x6)
-
Base Part Number:
MIC26601
-
detail:
Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 6A 28-PowerVQFN
