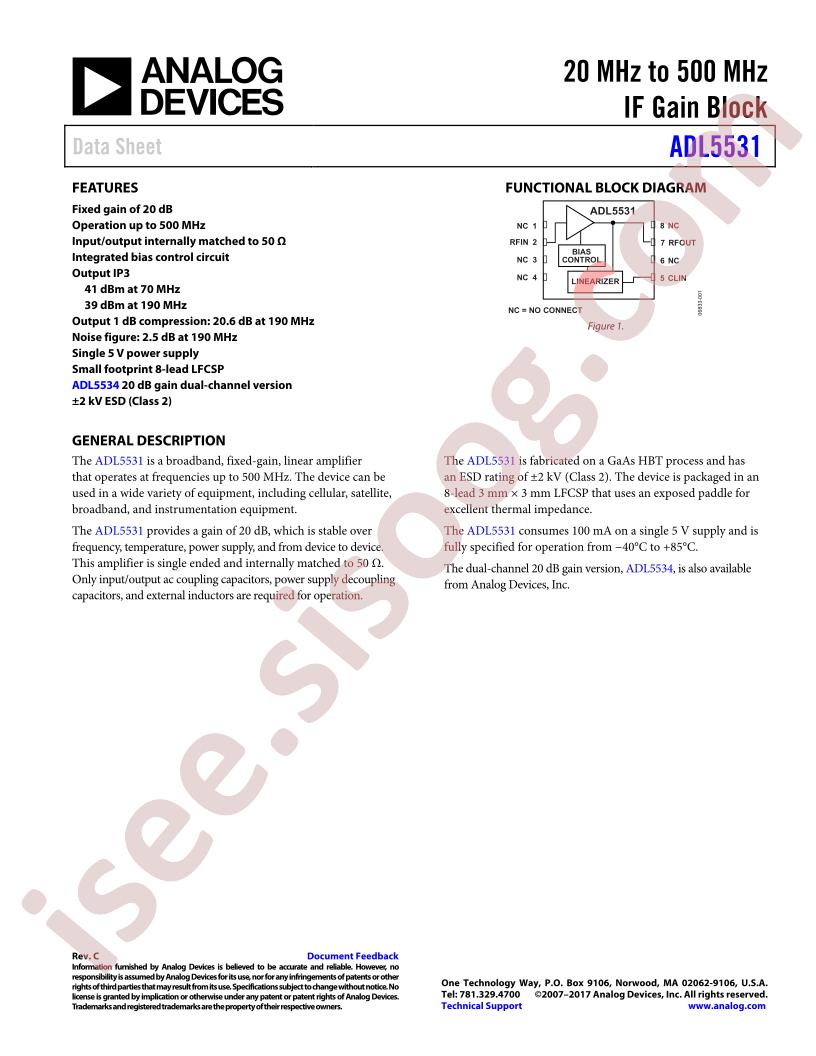

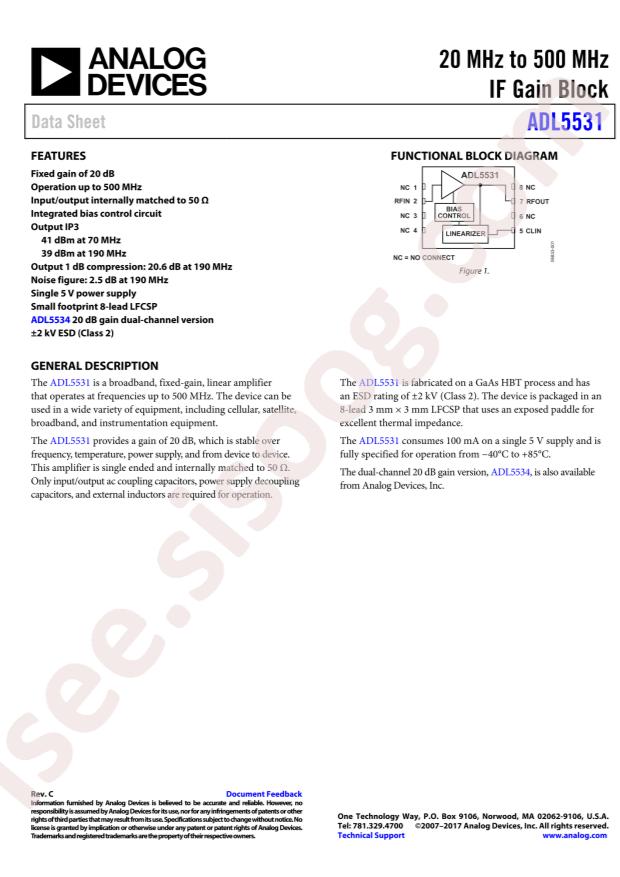

دیتاشیت ADL5531ACPZ-R7
مشخصات دیتاشیت
| نام دیتاشیت |
ADL5531
|
| حجم فایل |
510.663
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
12
|
مشخصات
-
Manufacturer:
Analog Devices Inc.
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Frequency:
20MHz ~ 500MHz
-
P1dB:
20.4dBm
-
Gain:
19.2dB ~ 20.5dB
-
Noise Figure:
3dB
-
RF Type:
W-CDMA, CDMA, GSM, UMTS
-
Voltage - Supply:
4.75V ~ 5.25V
-
Current - Supply:
100mA ~ 110mA
-
Test Frequency:
380MHz
-
Mounting Type:
Surface Mount
-
Package / Case:
8-VFDFN Exposed Pad, CSP
-
Supplier Device Package:
8-LFCSP-VD (3x3)
-
Base Part Number:
ADL5531
-
detail:
RF Amplifier IC W-CDMA, CDMA, GSM, UMTS 20MHz ~ 500MHz 8-LFCSP-VD (3x3)
