SN74LVC2G02MDCUREP دیتاشیت

مشخصات دیتاشیت

مشاهده دیتاشیت SN74LVC2G02MDCUREP	دانلود دیتاشیت

RoHS: true
Category: Logic ICs/Gates

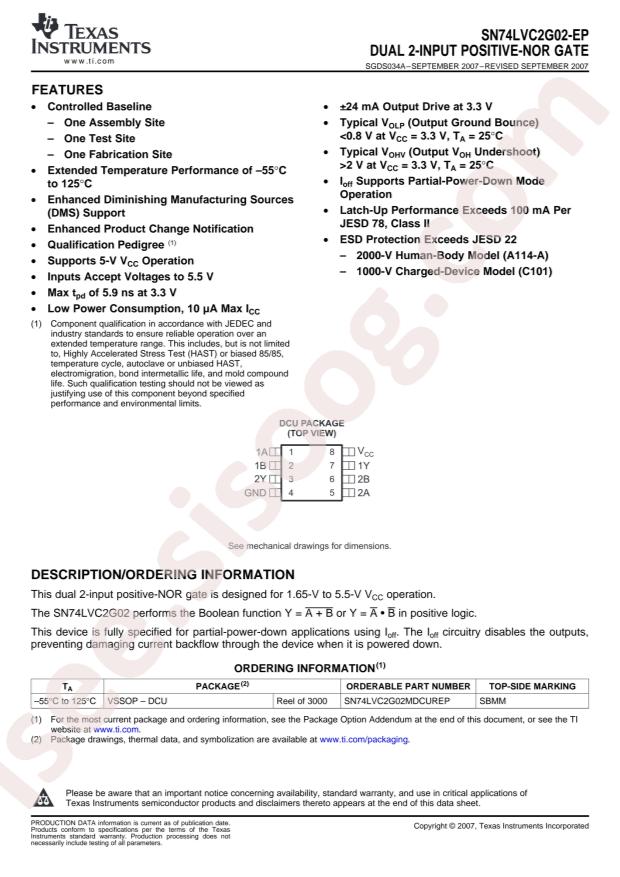

Datasheet: Texas Instruments SN74LVC2G02MDCUREP
Package: VSSOP-8
Manufacturer: Texas Instruments
Series: 74LVC
Current - Quiescent (Max): 10µA
Package / Case: 8-VFSOP (0.091", 2.30mm Width)
Logic Level - High: 1.7V ~ 2V
Number of Circuits: 2
Number of Inputs: 2
Features: -
Current - Output High, Low: 32mA, 32mA
Mounting Type: Surface Mount
Supplier Device Package: 8-VSSOP
Logic Type: NOR Gate
Operating Temperature: -55°C ~ 125°C (TA)
Notification: QPL or Military Specs are for reference only. Parts are not for military use. See Terms and Conditions.
Max Propagation Delay @ V, Max CL: 5.4ns @ 5V, 50pF
Voltage - Supply: 1.65V ~ 5.5V
Packaging: Cut Tape (CT)
Base Part Number: SN74LVC2G
Part Status: Discontinued at Digi-Key
Logic Level - Low: 0.7V ~ 0.8V
detail: NOR Gate IC 2 Channel 8-VSSOP
