دیتاشیت ADP3300ARTZ-3-RL7
مشخصات دیتاشیت
| نام دیتاشیت | ADP3300 |
|---|---|
| حجم فایل | 289.556 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 9 |
دانلود دیتاشیت ADP3300 |

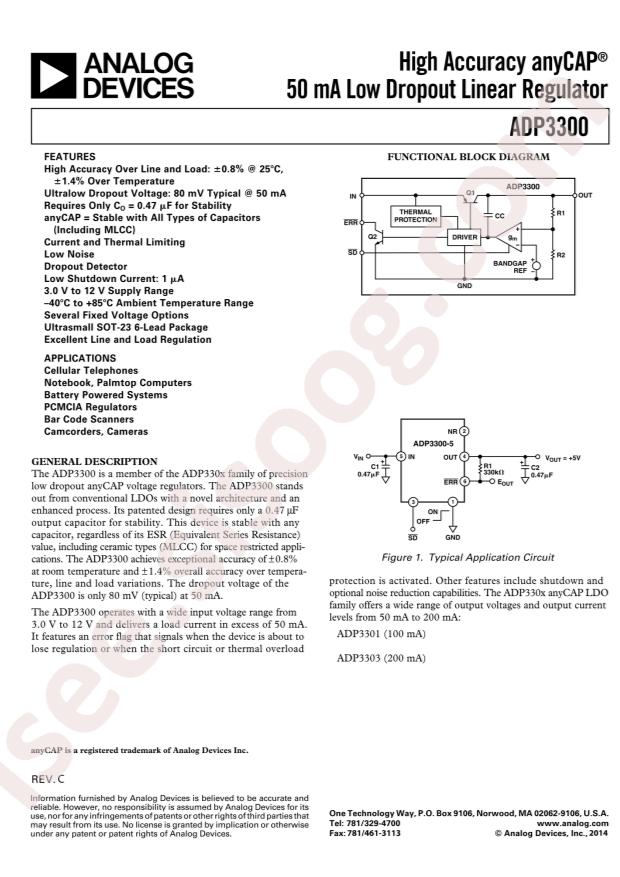

ADP3300 Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/Linear Voltage Regulators (LDO)
- Datasheet: Analog Devices ADP3300ARTZ-3-RL7
- Output Type: Fixed
- Output Current: 50mA
- Output Voltage: 3V~3V
- Dropout Voltage: 170mV@(50mA)
- Output Polarity: Positive
- Number of Outputs: 1
- Maximum Input Voltage: 12V
- Operating Temperature: -40°C~+85°C@(Ta)
- Quiescent Current (Ground Current): 300uA
- Power Supply Rejection Ratio (PSRR): -
- Package: SOT-23-6
- Manufacturer: Analog Devices
- Series: anyCAP®
- Packaging: Cut Tape (CT)
- Part Status: Active
- Output Configuration: Positive
- Number of Regulators: 1
- Voltage - Input (Max): 12V
- Voltage - Output (Min/Fixed): 3V
- Voltage - Output (Max): -
- Voltage Dropout (Max): 0.17V @ 50mA
- Current - Output: 50mA
- Current - Quiescent (Iq): 300µA
- Current - Supply (Max): 1.7mA
- PSRR: -
- Control Features: Enable
- Protection Features: Over Current, Over Temperature
- Mounting Type: Surface Mount
- Package / Case: SOT-23-6
- Supplier Device Package: SOT-23-6
- Base Part Number: ADP3300
- detail: Linear Voltage Regulator IC 1 Output 50mA SOT-23-6
