دیتاشیت LM2936QMM-3.0/NOPB

LM2936Q

مشخصات دیتاشیت

نام دیتاشیت LM2936Q
حجم فایل 1441.958 کیلوبایت
نوع فایل pdf
تعداد صفحات 34

دانلود دیتاشیت LM2936Q

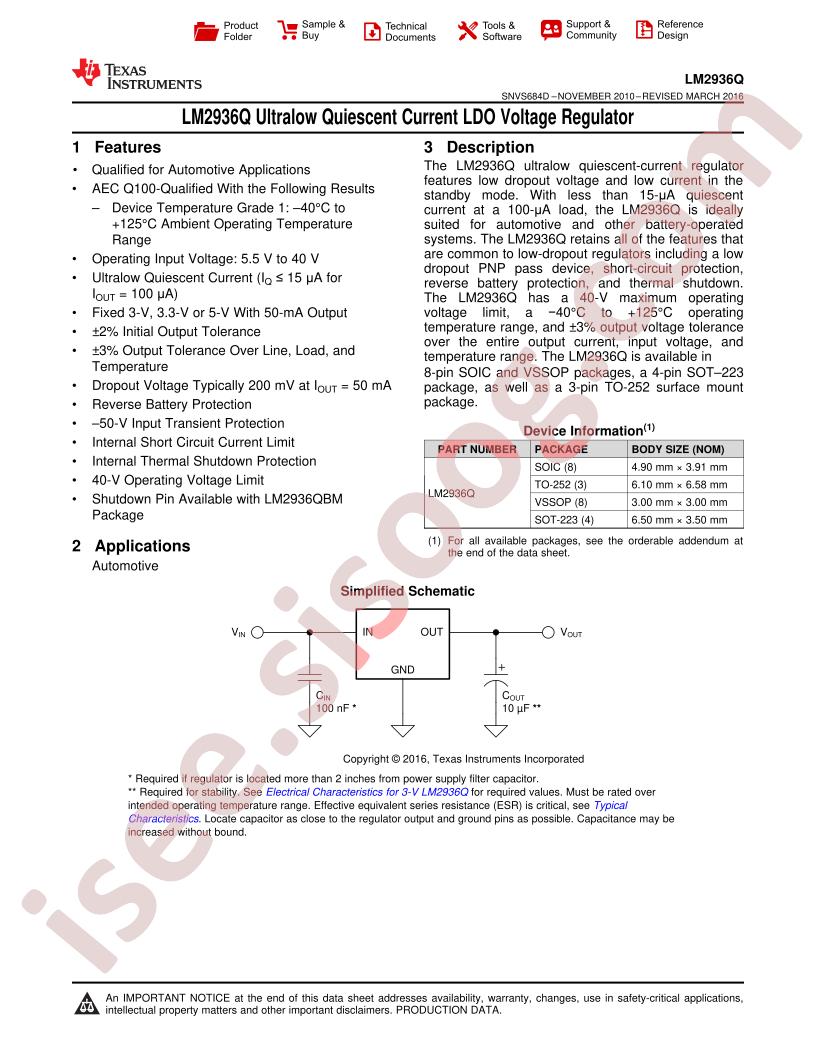

LM2936Q Datasheet

مشخصات

  • Voltage Dropout (Max): 0.2V @ 50mA
  • Current - Supply (Max): 2.5mA
  • Current - Output: 50mA
  • Current - Quiescent (Iq): 15µA
  • Voltage - Input (Max): 40V
  • Base Part Number: LM2936
  • Operating Temperature: -40°C ~ 125°C
  • Package / Case: 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
  • Voltage - Output (Max): -
  • Output Configuration: Positive
  • Series: Automotive, AEC-Q100
  • Supplier Device Package: 8-VSSOP
  • PSRR: 60dB (120Hz)
  • Part Status: Active
  • Mounting Type: Surface Mount
  • Control Features: -
  • Protection Features: Over Temperature, Reverse Polarity, Short Circuit
  • Voltage - Output (Min/Fixed): 3V
  • Manufacturer: Texas Instruments
  • Number of Regulators: 1
  • Packaging: Cut Tape (CT)
  • Output Type: Fixed
  • detail: Linear Voltage Regulator IC 1 Output 50mA 8-VSSOP
