UCC27201AQDMKRQ1 دیتاشیت

UCC27201AQDMKRQ1

مشخصات دیتاشیت

نام دیتاشیت UCC27201AQDMKRQ1
حجم فایل 87.242 کیلوبایت
نوع فایل pdf
تعداد صفحات 31

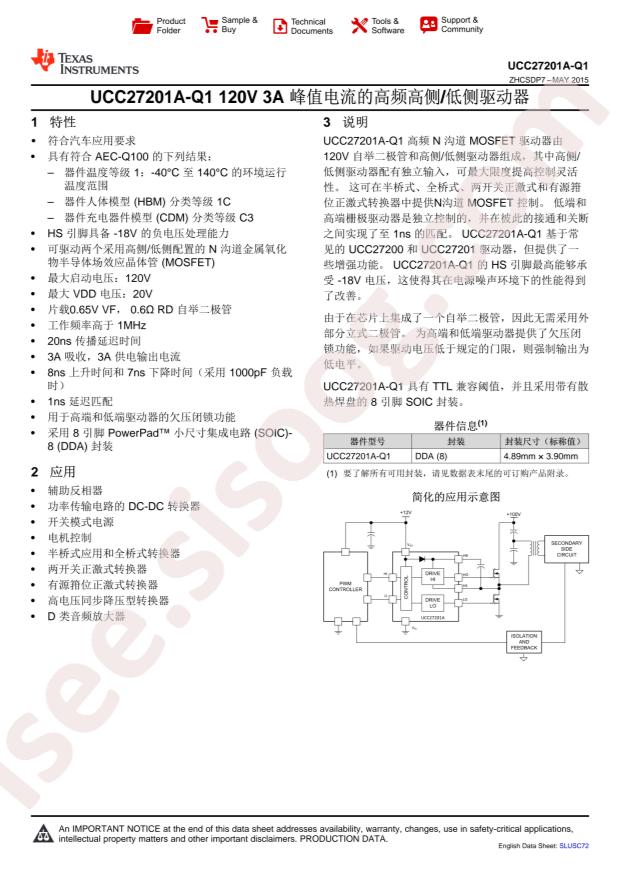

مشاهده دیتاشیت UCC27201AQDMKRQ1

دانلود دیتاشیت

سایر مستندات

UCC27201A-Q1 Datasheet 31 pages

مشخصات فنی

  • RoHS: true
  • Category: Power Supply Chip/Gate Drive ICs
  • Datasheet: Texas Instruments UCC27201AQDMKRQ1
  • Fall Time: 7ns
  • Load Type: MOSFET
  • Rise Time: 8ns
  • Supply Voltage: 8V~17V
  • Number of Drivers: 2
  • Driven Configuration: Half Bridge
  • Operating Temperature: -40°C~+140°C@(Tj)
  • Peak Output Current(sink): 3A
  • Peak Output Current(source): 3A
  • Package: SON-10
  • Manufacturer: Texas Instruments
  • Series: Automotive, AEC-Q100
  • Package / Case: 10-VDFN Exposed Pad
  • Current - Peak Output (Source, Sink): 3A, 3A
  • Base Part Number: UCC272
  • Channel Type: Independent
  • Rise / Fall Time (Typ): 8ns, 7ns
  • Part Status: Active
  • Mounting Type: Surface Mount
  • Logic Voltage - VIL, VIH: 0.8V, 2.5V
  • Gate Type: N-Channel MOSFET
  • Voltage - Supply: 8V ~ 17V
  • Packaging: Cut Tape (CT)
  • Input Type: Non-Inverting
  • Supplier Device Package: 10-VSON (4x4)
  • High Side Voltage - Max (Bootstrap): 120V
  • detail: Half-Bridge Gate Driver IC Non-Inverting 10-VSON (4x4)
