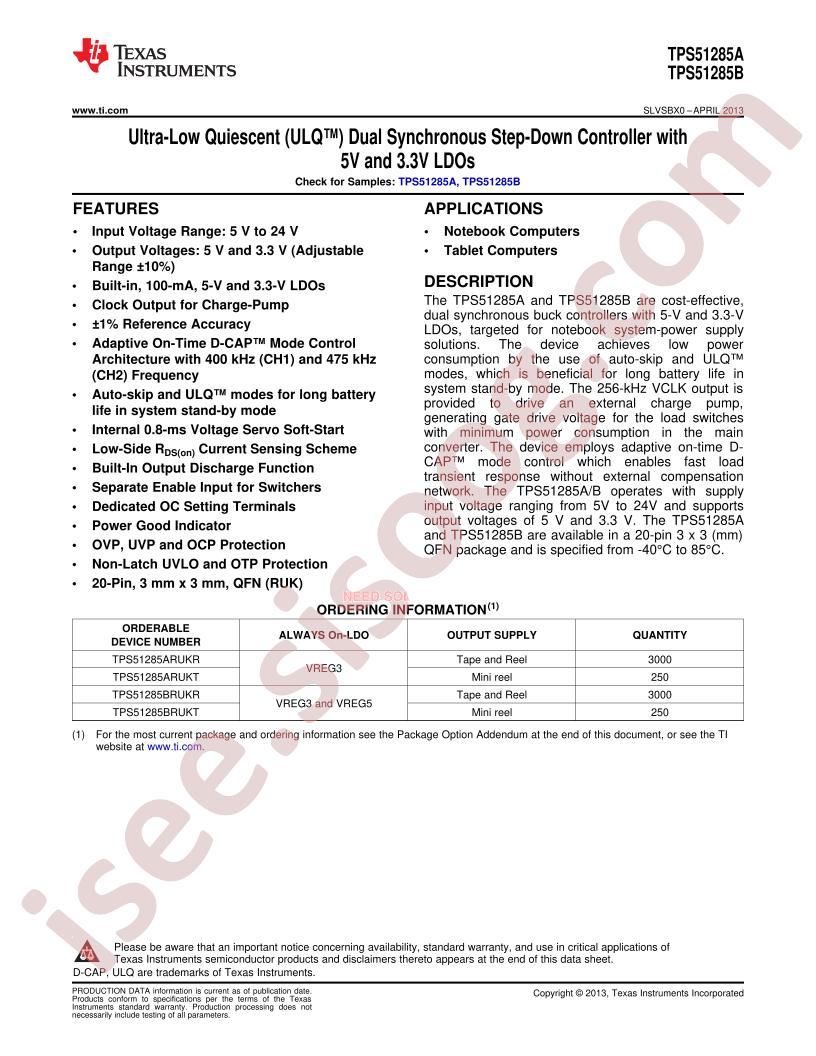

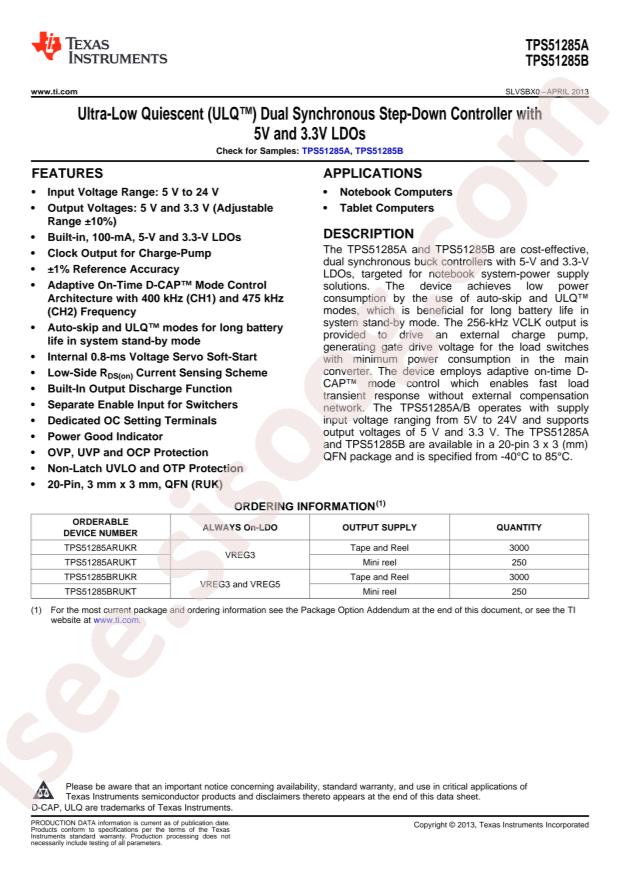

دیتاشیت TPS51285ARUKT
مشخصات دیتاشیت
| نام دیتاشیت |
TPS51285(A,B)
|
| حجم فایل |
1435.45
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
32
|
مشخصات
-
RoHS:
true
-
Category:
Power Supply Chip/Linear Voltage Regulators (LDO)
-
Datasheet:
Texas Instruments TPS51285ARUKT
-
Output Type:
-
-
Package:
QFN-20-EP(3x3)
-
Manufacturer:
Texas Instruments
-
Series:
D-CAP™
-
Topology:
Step-Down (Buck) Synchronous (2), Linear (LDO) (2)
-
w/Sequencer:
No
-
Number of Outputs:
4
-
Package / Case:
20-WFQFN Exposed Pad
-
Frequency - Switching:
400kHz, 475kHz
-
Part Status:
Active
-
Mounting Type:
Surface Mount
-
Operating Temperature:
-40°C ~ 85°C
-
Voltage/Current - Output 1:
Controller
-
w/LED Driver:
No
-
Voltage/Current - Output 2:
Controller
-
w/Supervisor:
No
-
Voltage/Current - Output 3:
3.3V, 100mA
-
Voltage - Supply:
5V ~ 24V
-
Packaging:
Cut Tape (CT)
-
Base Part Number:
TPS512
-
Supplier Device Package:
20-WQFN (3x3)
-
detail:
PMIC - Voltage Regulators - Linear + Switching 4 Output Step-Down (Buck) Synchronous (2), Linear (LDO) (2) 400kHz, 475kHz 20-WQFN (3x3)
