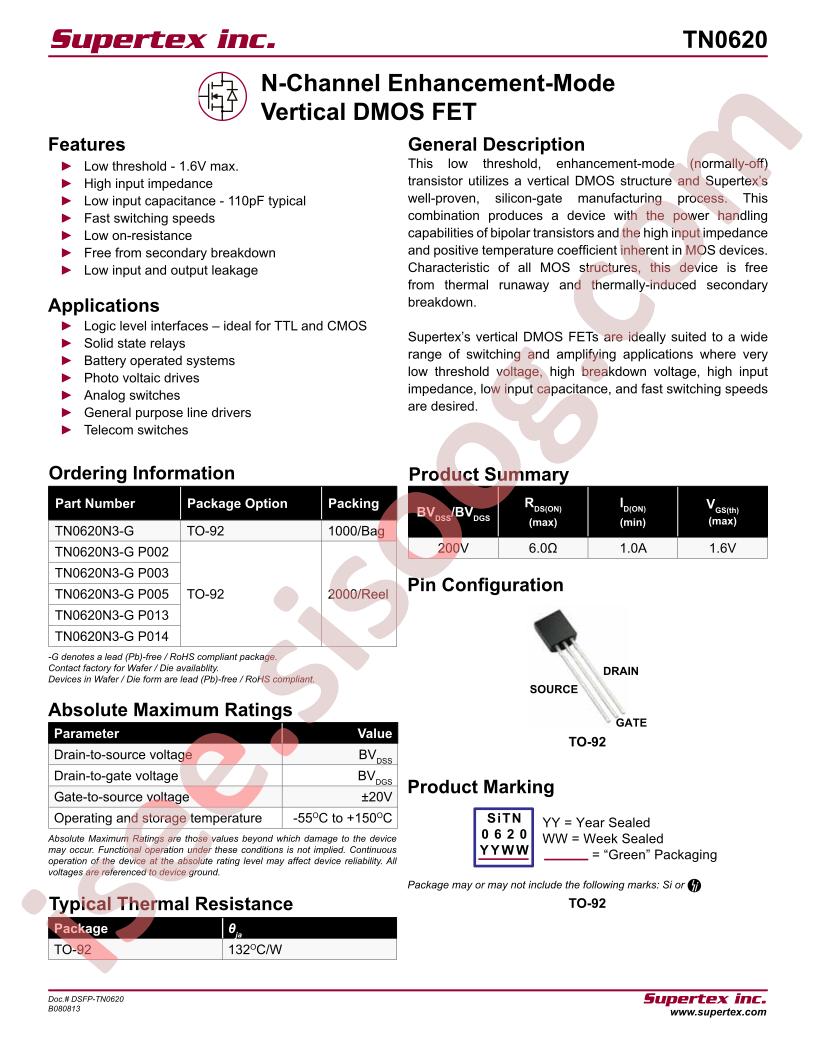

دیتاشیت TN0620N3-G-P002
مشخصات دیتاشیت
| نام دیتاشیت |
TN0620
|
| حجم فایل |
614.648
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
5
|
مشخصات
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
Microchip Tech TN0620N3-G-P002
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
1W
-
Drain Source Voltage (Vdss):
200V
-
Input Capacitance (Ciss@Vds):
150pF@25V
-
Continuous Drain Current (Id):
250mA
-
Gate Threshold Voltage (Vgs(th)@Id):
1.6V@1mA
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
6Ω@500mA,10V
-
Package:
TO-92
-
Manufacturer:
Microchip Tech
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
200V
-
Current - Continuous Drain (Id) @ 25°C:
250mA (Tj)
-
Drive Voltage (Max Rds On, Min Rds On):
5V, 10V
-
Rds On (Max) @ Id, Vgs:
6Ohm @ 500mA, 10V
-
Vgs(th) (Max) @ Id:
1.6V @ 1mA
-
Vgs (Max):
±20V
-
Input Capacitance (Ciss) (Max) @ Vds:
150pF @ 25V
-
FET Feature:
-
-
Power Dissipation (Max):
1W (Tc)
-
Mounting Type:
Through Hole
-
Supplier Device Package:
TO-92-3
-
Package / Case:
TO-226-3, TO-92-3 (TO-226AA)
-
detail:
N-Channel 200V 250mA (Tj) 1W (Tc) Through Hole TO-92-3
