دیتاشیت LM5033SD/NOPB

مشخصات دیتاشیت

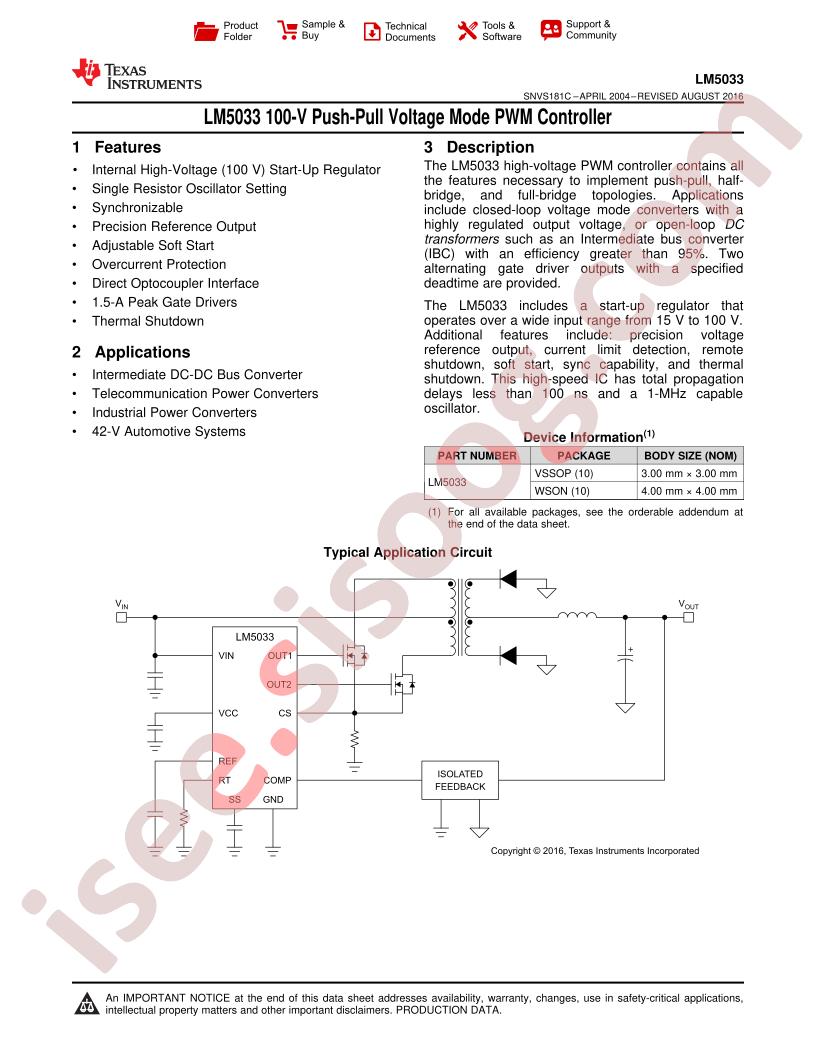

دانلود دیتاشیت LM5033 Datasheet	LM5033 Datasheet Datasheet

RoHS: true
Category: Power Supply Chip/DC-DC Controllers
Datasheet: Texas Instruments LM5033SD/NOPB
Package: DFN-10(4x4)
Manufacturer: Texas Instruments
Voltage - Supply (Vcc/Vdd): 15V ~ 90V
Package / Case: 10-WDFN Exposed Pad
Base Part Number: LM5033
Clock Sync: Yes
Control Features: Frequency Control, Soft Start
Part Status: Obsolete
Number of Outputs: 2
Series: -
Mounting Type: Surface Mount
Output Type: PWM Signal
Function: Step-Up/Step-Down
Output Configuration: Positive
Topology: Full-Bridge, Half-Bridge, Push-Pull
Synchronous Rectifier: Yes
Operating Temperature: -40°C ~ 125°C (TJ)
Frequency - Switching: 200kHz, 600kHz
Supplier Device Package: 10-WSON (4x4)
Duty Cycle (Max): -
Packaging: Cut Tape (CT)
Output Phases: 1
Serial Interfaces: -
detail: Full-Bridge, Half-Bridge, Push-Pull Regulator Positive Output Step-Up/Step-Down DC-DC Controller IC 10-WSON (4x4)
