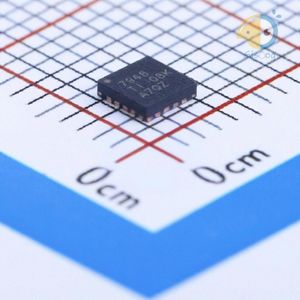

ADS7948SRTER دیتاشیت

ADS7948SRTER

مشخصات دیتاشیت

نام دیتاشیت ADS7948SRTER
حجم فایل 104.189 کیلوبایت
نوع فایل pdf
تعداد صفحات 38

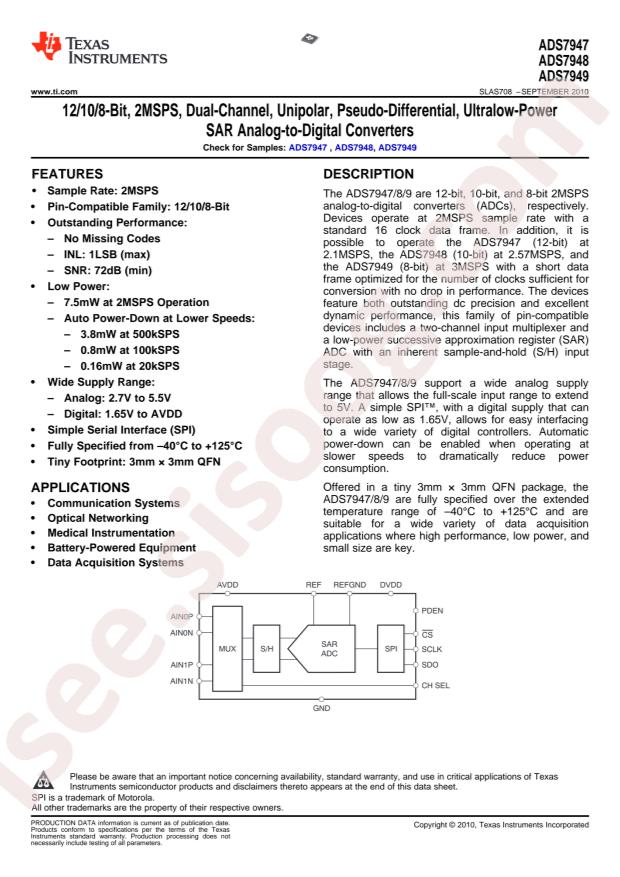

مشاهده دیتاشیت ADS7948SRTER

دانلود دیتاشیت

سایر مستندات

Analog Signal Chain Guide 11 pages

ADS7947-49 41 pages

مشخصات فنی

  • RoHS: true
  • Category: ADC/DAC/Data Conversion/Analog To Digital Converters (ADCs)
  • Datasheet: Texas Instruments ADS7948SRTER
  • Interface: SPI
  • resolution: 10Bit
  • Supply Voltage: 2.7V~5.25V
  • number of channels: 2
  • sampling frequency: 2MHz
  • Operating Temperature: -40°C~+125°C
  • Package: QFN-16-EP(3x3)
  • Manufacturer: Texas Instruments
  • Configuration: MUX-S/H-ADC
  • Voltage - Supply, Analog: 2.7V ~ 5.25V
  • Base Part Number: ADS7948
  • Voltage - Supply, Digital: 1.65V ~ 5.25V
  • Number of Bits: 10
  • Series: -
  • Package / Case: 16-WFQFN Exposed Pad
  • Packaging: Cut Tape (CT)
  • Supplier Device Package: 16-WQFN (3x3)
  • Number of Inputs: 2
  • Ratio - S/H:ADC: 1:1
  • Reference Type: External
  • Mounting Type: Surface Mount
  • Part Status: Active
  • Sampling Rate (Per Second): 2M
  • Number of A/D Converters: 1
  • Data Interface: SPI
  • Architecture: SAR
  • Input Type: Pseudo-Differential
  • Features: -
  • detail: 10 Bit Analog to Digital Converter 2 Input 1 SAR 16-WQFN (3x3)
