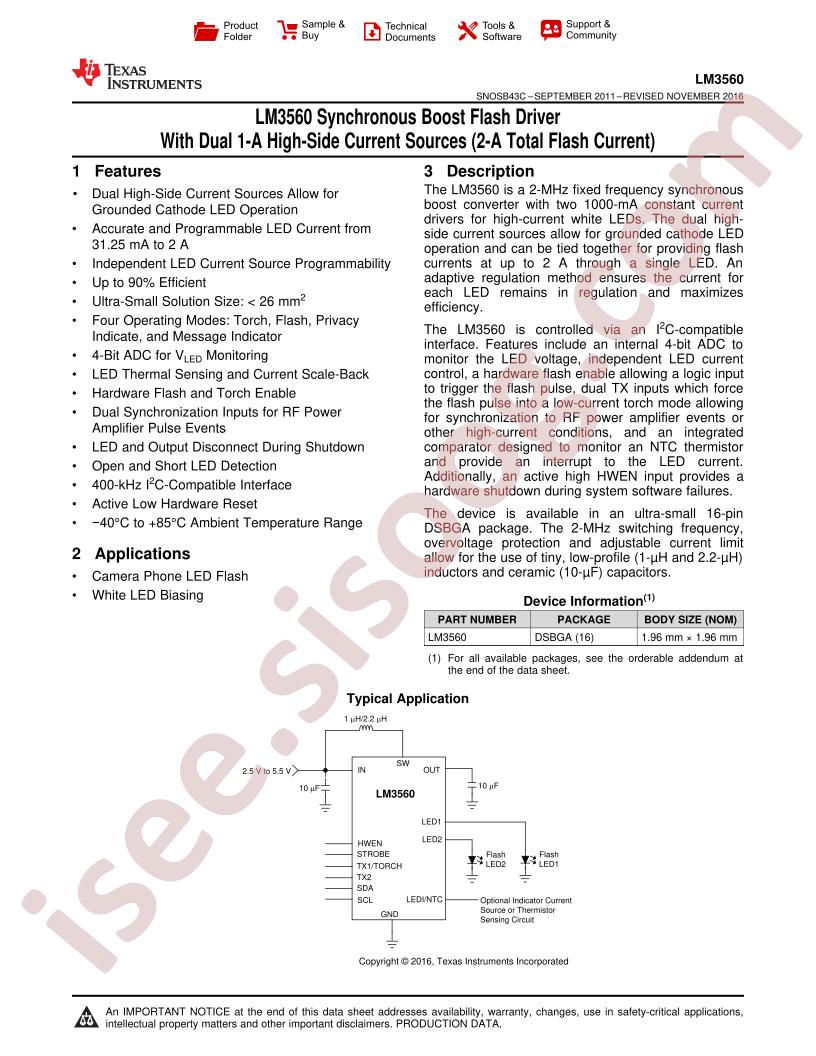

LM3560 Datasheet
Datasheet specifications
| Datasheet's name | LM3560 |
|---|---|
| File size | 3968.86 KB |
| File type | |
| Number of pages | 52 |
Download Datasheet LM3560 |
Download Datasheet |
|---|
Other documentations
LM3560TLE-20/NOPB 52 pages
Technical specifications
- RoHS: true
- Type: DC-DCVoltage Stabilizer
- Dimming: I2C
- Category: Nixie Tube Driver/LED Driver/LED Drivers
- Channels: 2
- Topology: boost converter
- Datasheet: Texas Instruments LM3560TLX/NOPB
- Input Voltage: 2.5V~5.5V
- Output Current: 1A
- Switch Frequency: 2MHz
- Operating temperature: -40°C~+85°C
- Package: BGA-16
- Manufacturer: Texas Instruments
- Series: -
- Package / Case: 16-WFBGA, DSBGA
- Frequency: 2MHz
- Number of Outputs: 2
- Part Status: Active
- Mounting Type: Surface Mount
- Internal Switch(s): Yes
- Applications: Camera Flash
- Voltage - Supply (Min): 2.5V
- Current - Output / Channel: 1A (Flash)
- Voltage - Output: -
- Packaging: Tape & Reel (TR)
- Base Part Number: LM3560
- Supplier Device Package: 16-DSBGA (2.5x2.12)
- Voltage - Supply (Max): 5.5V
- detail: LED Driver IC 2 Output DC DC Regulator Step-Up (Boost) I²C Dimming 1A (Flash) 16-DSBGA (2.5x2.12)
