MIC2211-AAYML-TR Datasheet

MIC2211-AAYML-TR

Datasheet specifications

Datasheet's name MIC2211-AAYML-TR
File size 73.758 KB
File type pdf
Number of pages 10

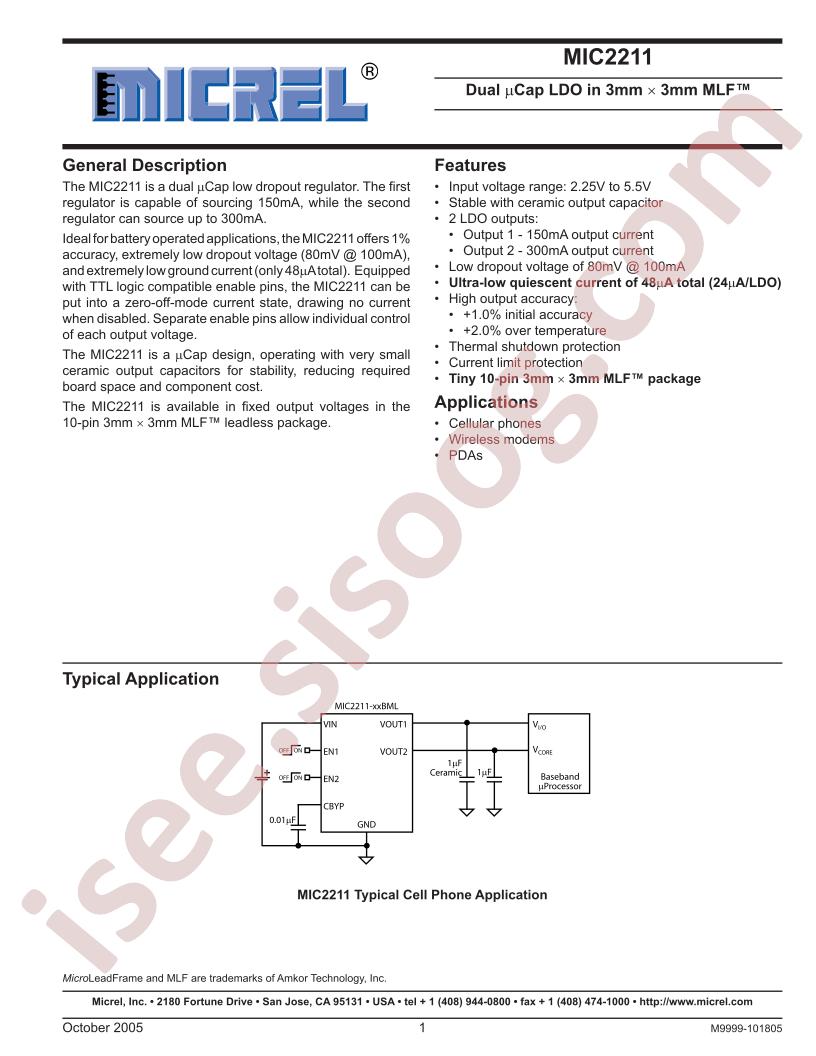

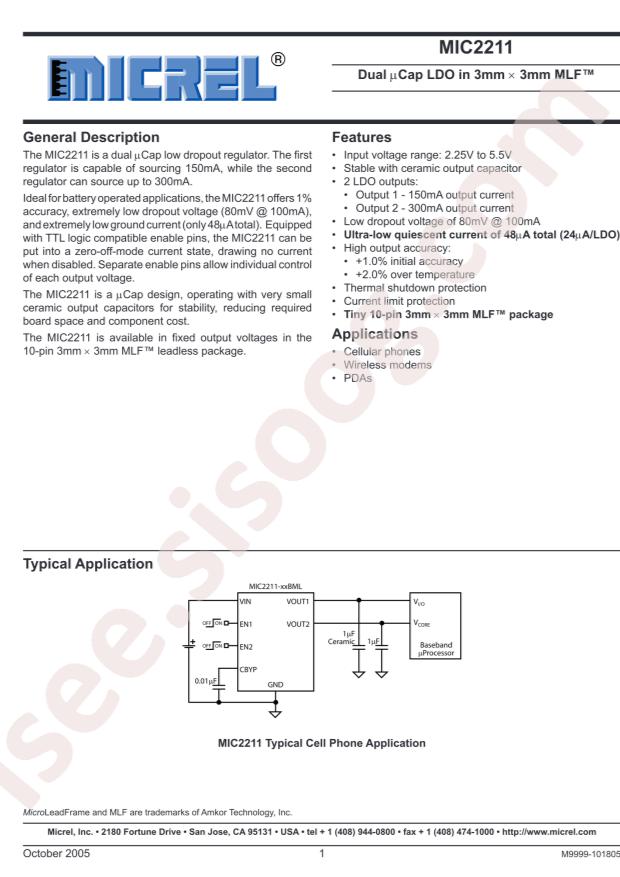

Download Datasheet MIC2211-AAYML-TR

Download Datasheet

Other documentations

MIC2211 10 pages

Technical specifications

  • RoHS: true
  • Category: Power Supply Chip/Linear Voltage Regulators (LDO)
  • Datasheet: Microchip Tech MIC2211-AAYML-TR
  • Package: QFN-10(3x3)
  • Manufacturer: Microchip Tech
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Output Configuration: Positive
  • Output Type: Adjustable
  • Number of Regulators: 2
  • Voltage - Input (Max): 5.5V
  • Voltage - Output (Min/Fixed): 1.25V
  • Voltage - Output (Max): 5V
  • Voltage Dropout (Max): 0.25V @ 150mA, 0.42V @ 300mA
  • Current - Output: 150mA, 300mA
  • Current - Quiescent (Iq): 80µA
  • PSRR: 60dB ~ 40dB (1KHz ~ 20kHz)
  • Control Features: Enable
  • Protection Features: Over Current, Over Temperature
  • Operating Temperature: -40°C ~ 125°C
  • Mounting Type: Surface Mount
  • Package / Case: 10-VFDFN Exposed Pad, 10-MLF®
  • Supplier Device Package: 10-MLF® (3x3)
  • Base Part Number: MIC2211
  • detail: Linear Voltage Regulator IC 2 Output 150mA, 300mA 10-MLF® (3x3)
