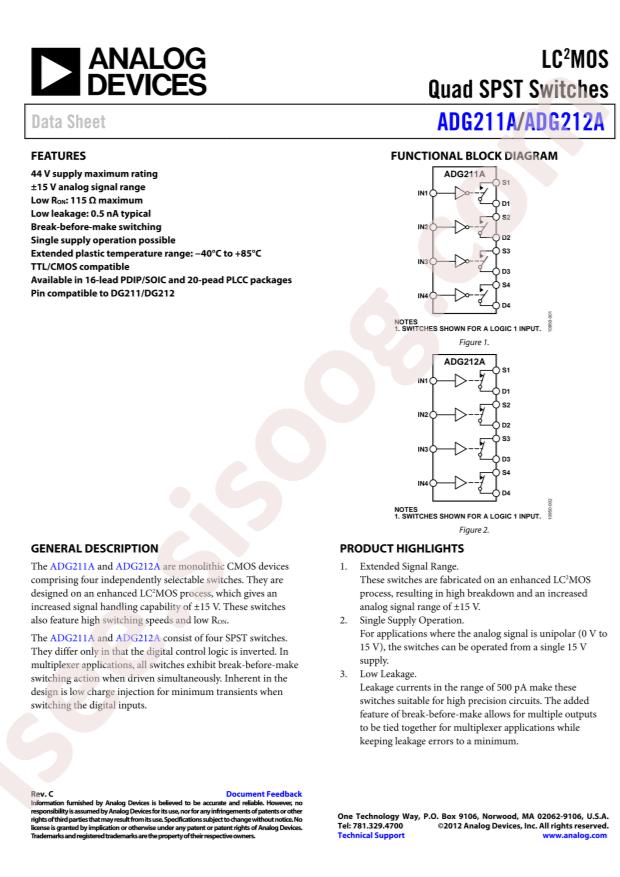

دیتاشیت ADG212AKRZ-REEL
مشخصات دیتاشیت
| نام دیتاشیت |
ADG211A,212A
|
| حجم فایل |
312.273
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
16
|
مشخصات
-
RoHS:
true
-
Category:
Communication Interface Chip/UART/485/232/Analog Switches / Multiplexers
-
Datasheet:
Analog Devices ADG212AKRZ-REEL
-
Turn-on time:
600ns
-
Turn-off time:
450ns
-
Supply Voltage:
15V
-
Switch Circuit:
SPST(SPST)-Normal Open
-
Number of Channels:
4
-
On-State Resistance (Max):
115Ω
-
Package:
SOIC-16
-
Manufacturer:
Analog Devices
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Obsolete
-
Multiplexer/Demultiplexer Circuit:
1:1
-
Number of Circuits:
4
-
Channel-to-Channel Matching (ΔRon):
5.75Ohm
-
Voltage - Supply, Single (V+):
15V
-
Voltage - Supply, Dual (V±):
±15V
-
Switch Time (Ton, Toff) (Max):
600ns, 450ns
-
-3db Bandwidth:
-
-
Charge Injection:
20pC
-
Channel Capacitance (CS(off), CD(off)):
5pF, 5pF
-
Current - Leakage (IS(off)) (Max):
5nA
-
Crosstalk:
-80dB @ 100kHz
-
Operating Temperature:
-40°C ~ 85°C (TA)
-
Mounting Type:
Surface Mount
-
Package / Case:
16-SOIC (0.154", 3.90mm Width)
-
Supplier Device Package:
16-SOIC
-
Base Part Number:
ADG212
-
detail:
4 Circuit IC Switch 1:1 115Ohm 16-SOIC
