دیتاشیت PIC16F19176-E/P
مشخصات دیتاشیت
| نام دیتاشیت | PIC16(L)F191xx Datasheet |
|---|---|
| حجم فایل | 11830.02 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 754 |

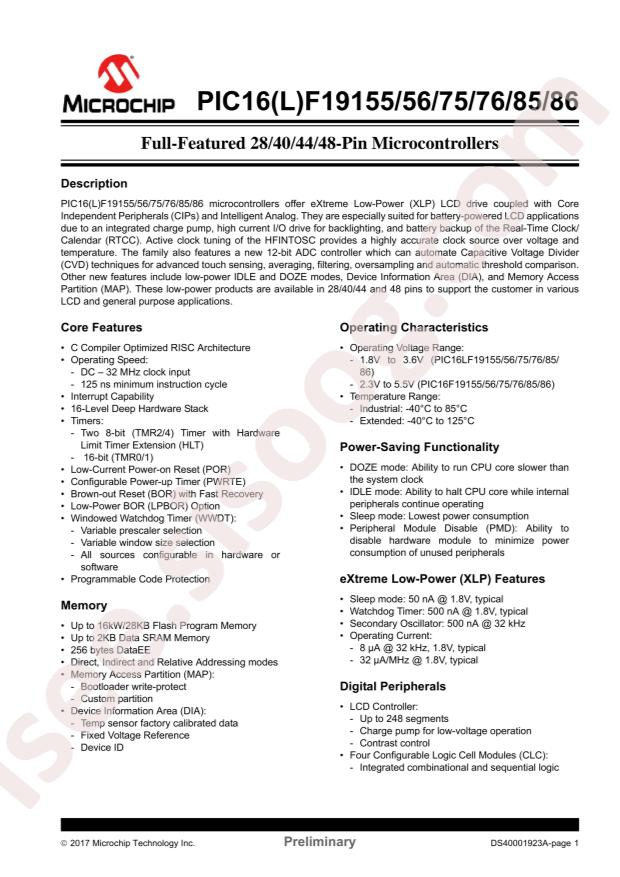

دانلود دیتاشیت PIC16(L)F191xx Datasheet |
PIC16(L)F191xx Datasheet Datasheet |
|---|
مشخصات
- RoHS: true
- EEPROM: 256Byte
- CPU Core: PIC
- Category: Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
- RAM Size: 2KB
- Watchdog: Yes
- ADC (Bit): 12bit
- DAC (Bit): 5bit
- Datasheet: Microchip Tech PIC16F19176-E/P
- PWM (Bit): -
- LCD Module: Yes
- Real-Time Clock: -
- CPU Maximum Speed: 32MHz
- GPIO Ports Number: 35
- Low-Voltage Detect: Yes
- CCP Capture/Compare: -
- Internal Comparator: -
- Internal Oscillator: Yes
- Peripheral/Function: LCD/LED Driver
- Program Memory Type: FLASH
- Direct Memory Access: -
- Program Storage Size: 28KB
- Universal Serial Bus: -
- communication protocol: -
- Operating Voltage Range: 2.3V~5.5V
- Infrared Data Association: -
- Operating Temperature Range: -40°C~+125°C
- Secure Digital Input and Output: -
- Package: PDIP-40
- Manufacturer: Microchip Tech
- Series: PIC® XLP™ 16F
- Packaging: Tube
- Part Status: Active
- Core Processor: PIC
- Core Size: 8-Bit
- Speed: 32MHz
- Connectivity: I²C, LINbus, SPI, UART/USART
- Peripherals: Brown-out Detect/Reset, LCD, POR, PWM, WDT
- Number of I/O: 35
- Program Memory Size: 28KB (16K x 14)
- EEPROM Size: 256 x 8
- Voltage - Supply (Vcc/Vdd): 2.3V ~ 5.5V
- Data Converters: A/D 31x12b; D/A 1x5b
- Oscillator Type: Internal
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting Type: Through Hole
- Package / Case: 40-DIP (0.600", 15.24mm)
- Supplier Device Package: 40-PDIP
- Base Part Number: PIC16F19176
- detail: PIC PIC® XLP™ 16F Microcontroller IC 8-Bit 32MHz 28KB (16K x 14) FLASH 40-PDIP
