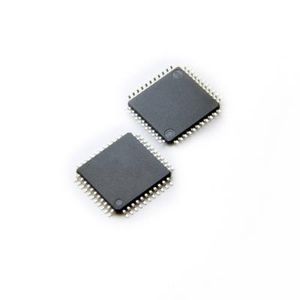

دیتاشیت PIC16F1789-I/MV

PIC16(L)F1788/9 Datasheet

مشخصات دیتاشیت

نام دیتاشیت PIC16(L)F1788/9 Datasheet
حجم فایل 6150.402 کیلوبایت
نوع فایل pdf
تعداد صفحات 474

دانلود دیتاشیت PIC16(L)F1788/9 Datasheet

PIC16(L)F1788/9 Datasheet Datasheet

مشخصات

  • Manufacturer: Microchip Technology
  • Series: PIC® XLP™ 16F
  • Packaging: Tube
  • Part Status: Active
  • Core Processor: PIC
  • Core Size: 8-Bit
  • Speed: 32MHz
  • Connectivity: I²C, LINbus, SPI, UART/USART
  • Peripherals: Brown-out Detect/Reset, POR, PSMC, PWM, WDT
  • Number of I/O: 35
  • Program Memory Size: 28KB (16K x 14)
  • Program Memory Type: FLASH
  • EEPROM Size: 256 x 8
  • RAM Size: 2K x 8
  • Voltage - Supply (Vcc/Vdd): 2.3V ~ 5.5V
  • Data Converters: A/D 14x12b; D/A 1x8b, 3x5b
  • Oscillator Type: Internal
  • Operating Temperature: -40°C ~ 85°C (TA)
  • Mounting Type: Surface Mount
  • Package / Case: 40-UFQFN Exposed Pad
  • Supplier Device Package: 40-UQFN (5x5)
  • Base Part Number: PIC16F1789
  • detail: PIC PIC® XLP™ 16F Microcontroller IC 8-Bit 32MHz 28KB (16K x 14) FLASH 40-UQFN (5x5)
