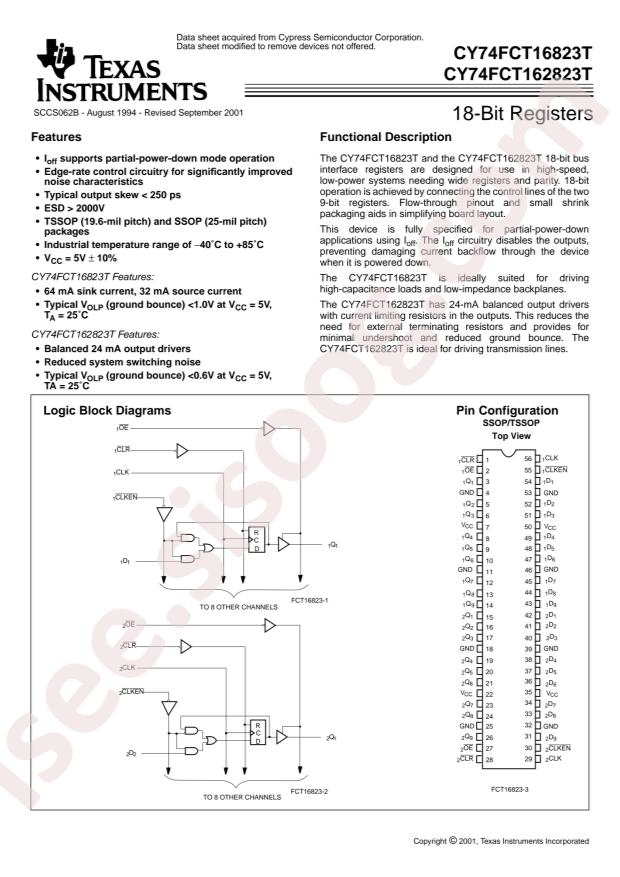

CY74FCT16823ATPACT دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | CY74FCT16823ATPACT |
|---|---|
| حجم فایل | 88.311 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 17 |
دانلود دیتاشیت CY74FCT16823ATPACT |
دانلود دیتاشیت |
|---|
سایر مستندات
CY74FCT16(2)823T 16 pages
مشخصات فنی
- RoHS: true
- Type: D-Type
- Series: 74FCT
- Category: Logic ICs/Flip Flops
- Function: Reset
- Datasheet: Texas Instruments CY74FCT16823ATPACT
- Output Type: Tri-State;Non-Inverted
- Sink Current: 64mA
- Trigger Type: 上升沿
- Source Current: 32mA
- Supply Voltage: 4.5V~5.5V
- Clock Frequency: -
- Input Capacitance: 4.5pF
- Quiescent Current (Iq): 500uA
- Maximum Propagation Delay: 20ns@5V,300pF
- Package: TSSOP-56-6.1mm
- Manufacturer: Texas Instruments
- Package / Case: 56-TFSOP (0.240", 6.10mm Width)
- Current - Output High, Low: 32mA, 64mA
- Number of Elements: 2
- Current - Quiescent (Iq): 500µA
- Part Status: Discontinued at Digi-Key
- Number of Bits per Element: 9
- Mounting Type: Surface Mount
- Operating Temperature: -40°C ~ 85°C (TA)
- Max Propagation Delay @ V, Max CL: 20ns @ 5V, 300pF
- Voltage - Supply: 4.5V ~ 5.5V
- Packaging: Cut Tape (CT)
- Base Part Number: 74FCT16823
- Supplier Device Package: 56-TSSOP
- detail: Flip Flop 2 Element D-Type 9 Bit Positive Edge 56-TFSOP (0.240", 6.10mm Width)
