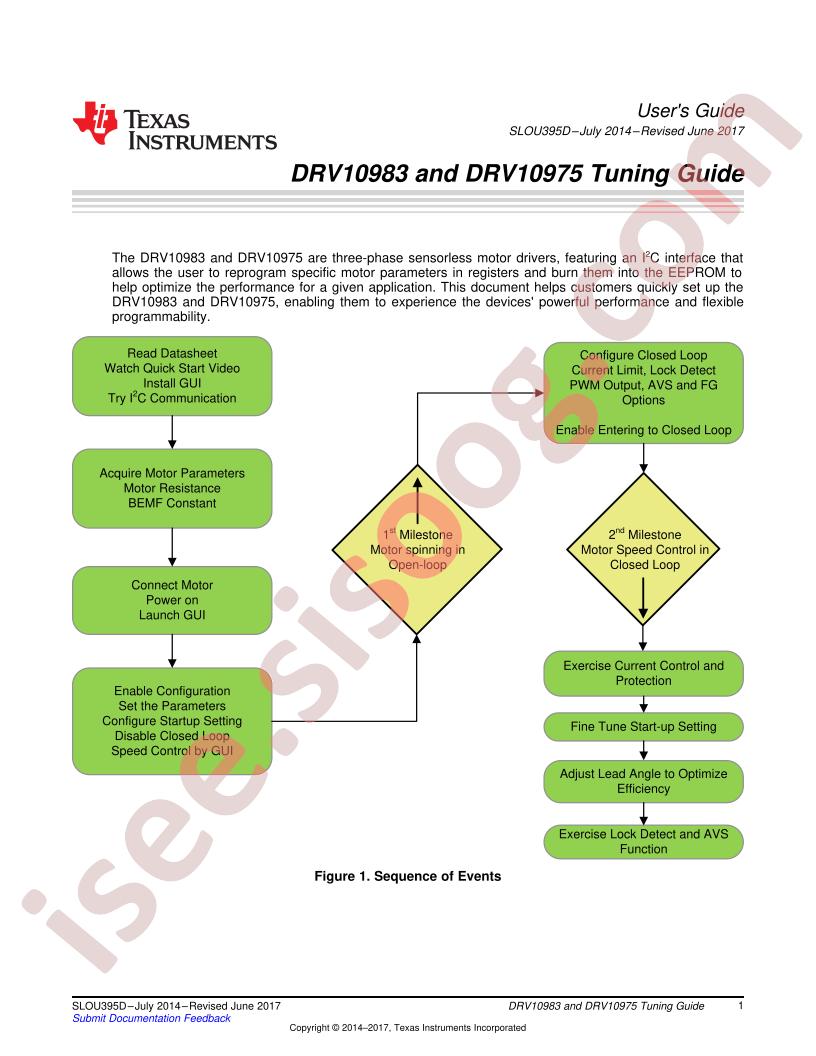

DRV10983 Tuning Guide دیتاشیت

DRV10983 Tuning Guide

مشخصات دیتاشیت

نام دیتاشیت DRV10983 Tuning Guide
حجم فایل 4921.976 کیلوبایت
نوع فایل pdf
تعداد صفحات 40

دانلود دیتاشیت DRV10983 Tuning Guide

دانلود دیتاشیت

سایر مستندات

DRV10975 Datasheet 65 pages

DRV10983, DRV1075 IPD Tuning Guide 25 pages

TIDA-01373 Quick Start User Guide 49 pages

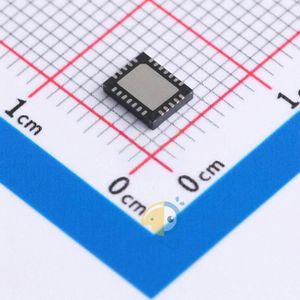

DRV10975RHFR 66 pages

مشخصات فنی

  • RoHS: true
  • Type: 无刷直流BLDC
  • Category: Power Supply Chip/Motor Driver ICs
  • Datasheet: Texas Instruments DRV10975ZPWPR
  • Interface: I2C;PWM
  • Output Current: 1.5A
  • Supply Voltage: 6.5V~18V
  • Operating Temperature: -40°C~+125°C@(Tj)
  • Package: TSSOP-24-EP
  • Manufacturer: Texas Instruments
  • Series: -
  • Technology: Power MOSFET
  • Package / Case: 24-TSSOP (0.173", 4.40mm Width) Exposed Pad
  • Function: Driver - Fully Integrated, Control and Power Stage
  • Current - Output: 1.5A
  • Part Status: Active
  • Base Part Number: DRV1097
  • Mounting Type: Surface Mount
  • Motor Type - Stepper: -
  • Applications: Appliance
  • Motor Type - AC, DC: Brushless DC (BLDC)
  • Voltage - Supply: 6.5V ~ 18V
  • Step Resolution: -
  • Packaging: Cut Tape (CT)
  • Output Configuration: Half Bridge (3)
  • Voltage - Load: 6.5V ~ 18V
  • Supplier Device Package: 24-HTSSOP
  • detail: Motor Driver Power MOSFET Analog, I²C, PWM 24-HTSSOP
