- دیتاشیت MIC29150-5.0WU-TR
دیتاشیت MIC29150-5.0WU-TR
مشخصات دیتاشیت
| نام دیتاشیت | MIC29150, MIC29300, MIC29500, MIC29750 |
|---|---|
| حجم فایل | 2666.054 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 42 |
دانلود دیتاشیت MIC29150, MIC29300, MIC29500, MIC29750 |

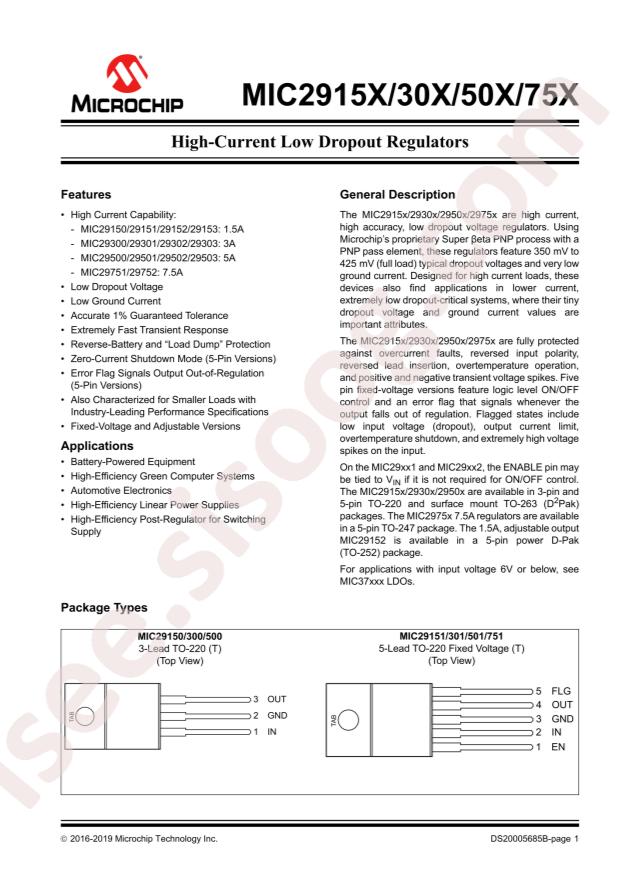

MIC29150, MIC29300, MIC29500, MIC29750 Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/Linear Voltage Regulators (LDO)
- Datasheet: Microchip Tech MIC29150-5.0WU-TR
- Output Current: 1.5A
- Output Voltage: 5V
- Dropout Voltage: 0.6V@(1.5A)
- Output Polarity: positive
- Number of Outputs: 1
- Maximum Input Voltage: 26V
- Operating Temperature: -40°C~+125°C
- Package: TO-263-3
- Manufacturer: Microchip Tech
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Active
- Output Configuration: Positive
- Output Type: Fixed
- Number of Regulators: 1
- Voltage - Input (Max): 26V
- Voltage - Output (Min/Fixed): 5V
- Voltage - Output (Max): -
- Voltage Dropout (Max): 0.6V @ 1.5A
- Current - Output: 1.5A
- PSRR: -
- Control Features: -
- Protection Features: Over Current, Over Temperature, Reverse Polarity, Transient Voltage
- Mounting Type: Surface Mount
- Package / Case: TO-263-4, D²Pak (3 Leads + Tab), TO-263AA
- Supplier Device Package: TO-263-3
- Base Part Number: MIC29150-5.0
- detail: Linear Voltage Regulator IC 1 Output 1.5A TO-263-3
