دیتاشیت AT89LP51RB2-20JU
مشخصات دیتاشیت
| نام دیتاشیت | AT89LP51RB2,RC2,IC2 Summary |
|---|---|
| حجم فایل | 865.398 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 26 |
دانلود دیتاشیت AT89LP51RB2,RC2,IC2 Summary |

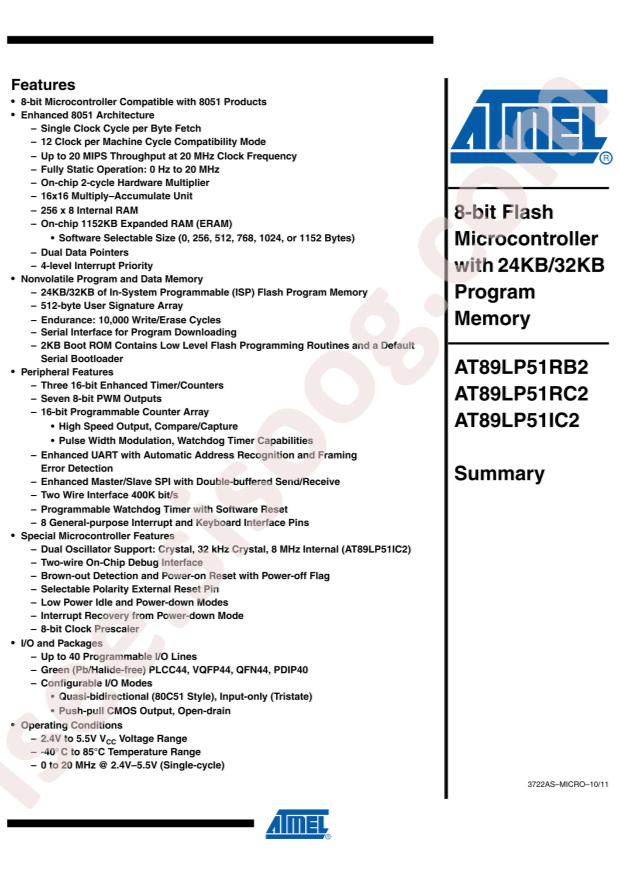

AT89LP51RB2,RC2,IC2 Summary Datasheet |
|---|
مشخصات
- RoHS: true
- EEPROM: -
- CPU Core: 51Series
- Category: Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
- RAM Size: -
- Watchdog: Yes
- ADC (Bit): 10bit
- DAC (Bit): -
- Datasheet: Microchip Tech AT89LP51RB2-20JU
- PWM (Bit): -
- Real-Time Clock: -
- CPU Maximum Speed: 20MHz
- GPIO Ports Number: 40
- Low-Voltage Detect: Yes
- CCP Capture/Compare: -
- Internal Comparator: -
- Internal Oscillator: Yes
- Peripheral/Function: PWM;WDT
- Program Memory Type: FLASH
- Direct Memory Access: -
- Program Storage Size: 24KB
- Universal Serial Bus: -
- communication protocol: -
- Operating Voltage Range: 2.4V~5.5V
- Infrared Data Association: -
- Operating Temperature Range: -40°C~+85°C
- Secure Digital Input and Output: -
- Package: PLCC-44
- Manufacturer: Microchip Tech
- Series: 89LP
- Packaging: Tube
- Part Status: Active
- Core Processor: 8051
- Core Size: 8-Bit
- Speed: 20MHz
- Connectivity: EBI/EMI, I²C, SPI, UART/USART
- Peripherals: Brown-out Detect/Reset, POR, PWM, WDT
- Number of I/O: 40
- Program Memory Size: 24KB (24K x 8)
- EEPROM Size: -
- Voltage - Supply (Vcc/Vdd): 2.4V ~ 5.5V
- Data Converters: A/D 7x10b
- Oscillator Type: Internal
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 44-LCC (J-Lead)
- Supplier Device Package: 44-PLCC (16.6x16.6)
- Base Part Number: AT89LP51RB2
- detail: 8051 89LP Microcontroller IC 8-Bit 20MHz 24KB (24K x 8) FLASH 44-PLCC (16.6x16.6)
