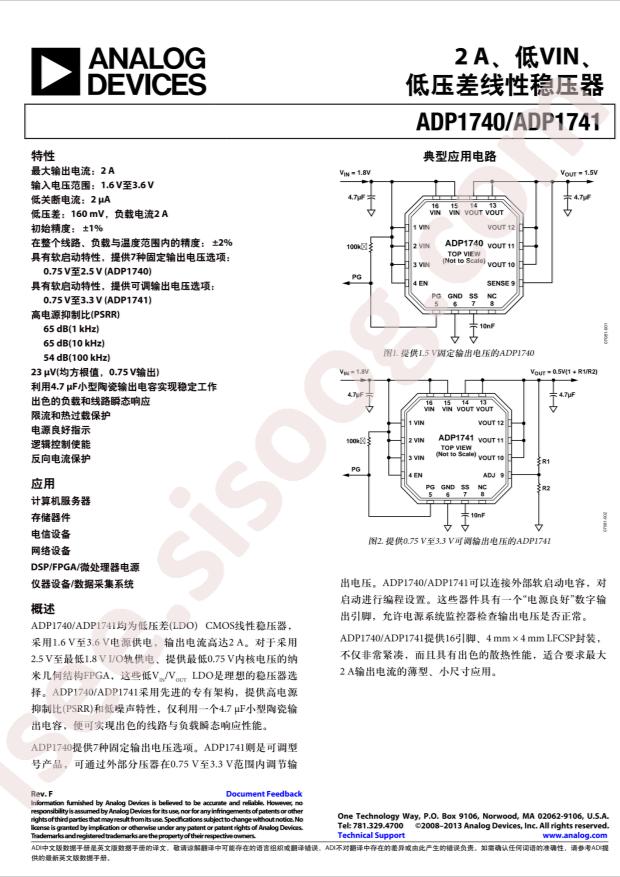

دیتاشیت ADP1740ACPZ-1.2-R7

ADP1740,1 Datasheet

مشخصات دیتاشیت

نام دیتاشیت ADP1740,1 Datasheet
حجم فایل 775.879 کیلوبایت
نوع فایل pdf
تعداد صفحات 20

دانلود دیتاشیت ADP1740,1 Datasheet

ADP1740,1 Datasheet Datasheet

مشخصات

  • Manufacturer: Analog Devices Inc.
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Output Configuration: Positive
  • Output Type: Fixed
  • Number of Regulators: 1
  • Voltage - Input (Max): 3.6V
  • Voltage - Output (Min/Fixed): 1.2V
  • Voltage - Output (Max): -
  • Voltage Dropout (Max): -
  • Current - Output: 2A
  • Current - Quiescent (Iq): 800µA
  • Current - Supply (Max): 1.8mA
  • PSRR: -
  • Control Features: Enable, Power Good, Soft Start
  • Protection Features: Over Current, Over Temperature, Reverse Polarity
  • Operating Temperature: -40°C ~ 125°C
  • Mounting Type: Surface Mount
  • Package / Case: 16-WQFN Exposed Pad, CSP
  • Supplier Device Package: 16-LFCSP-WQ (4x4)
  • Base Part Number: ADP1740
  • detail: Linear Voltage Regulator IC 1 Output 2A 16-LFCSP-WQ (4x4)
