دیتاشیت ATF1500A-10JU
مشخصات دیتاشیت

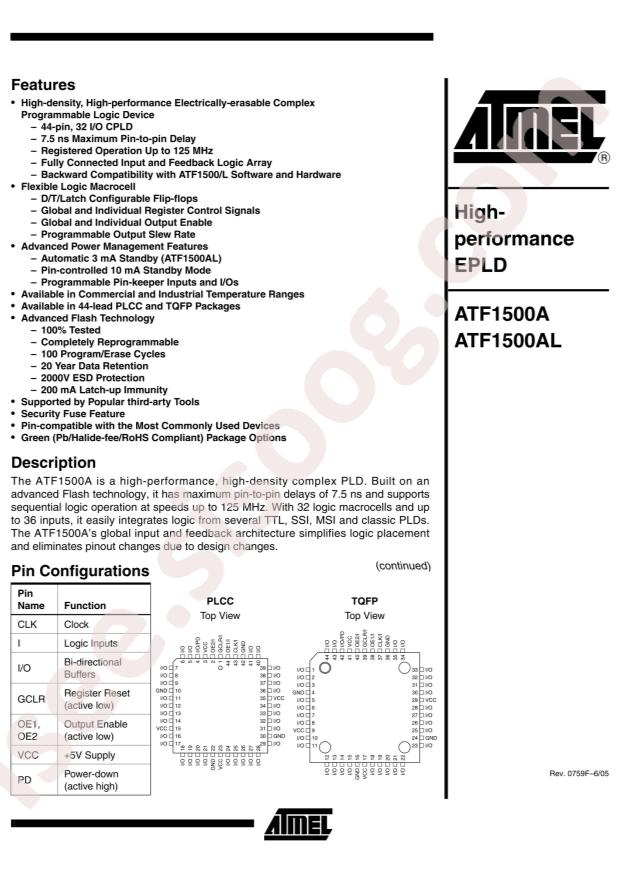

نام دیتاشیت |
ATF1500A(L)
|
حجم فایل |
609.257
کیلوبایت
|
نوع فایل |
pdf
|
تعداد صفحات |
19
|
مشخصات
-
RoHS:
true
-
Type:
其它PLD
-
Category:
Single Chip Microcomputer/Microcontroller/Programmable Logic Device (CPLDs/FPGAs)
-
Datasheet:
Microchip Tech ATF1500A-10JU
-
Logic Array Blocks:
-
-
Number of Logic Gates:
-
-
Logic Elements / Cells:
-
-
Maximum Delay Time Tpd:
10ns
-
Operating Temperature Range:
-40°C~+85°C
-
Supply Voltage Range - VCCIO:
4.5V~5.5V
-
Package:
PLCC-44(16.6x16.6)
-
Manufacturer:
Microchip Tech
-
Series:
ATF15xx
-
Packaging:
Tube
-
Part Status:
Active
-
Programmable Type:
In System Programmable (min 100 program/erase cycles)
-
Delay Time tpd(1) Max:
10ns
-
Voltage Supply - Internal:
4.5V ~ 5.5V
-
Number of Macrocells:
32
-
Number of I/O:
32
-
Operating Temperature:
-40°C ~ 85°C (TA)
-
Mounting Type:
Surface Mount
-
Package / Case:
44-LCC (J-Lead)
-
Supplier Device Package:
44-PLCC (16.6x16.6)
-
Base Part Number:
ATF1500
-
detail:
IC CPLD 32MC 10NS 44PLCC
