دیتاشیت LM3533TME-40/NOPB
مشخصات دیتاشیت
| نام دیتاشیت | LM3533 |
|---|---|
| حجم فایل | 1847.989 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 63 |
دانلود دیتاشیت LM3533 |

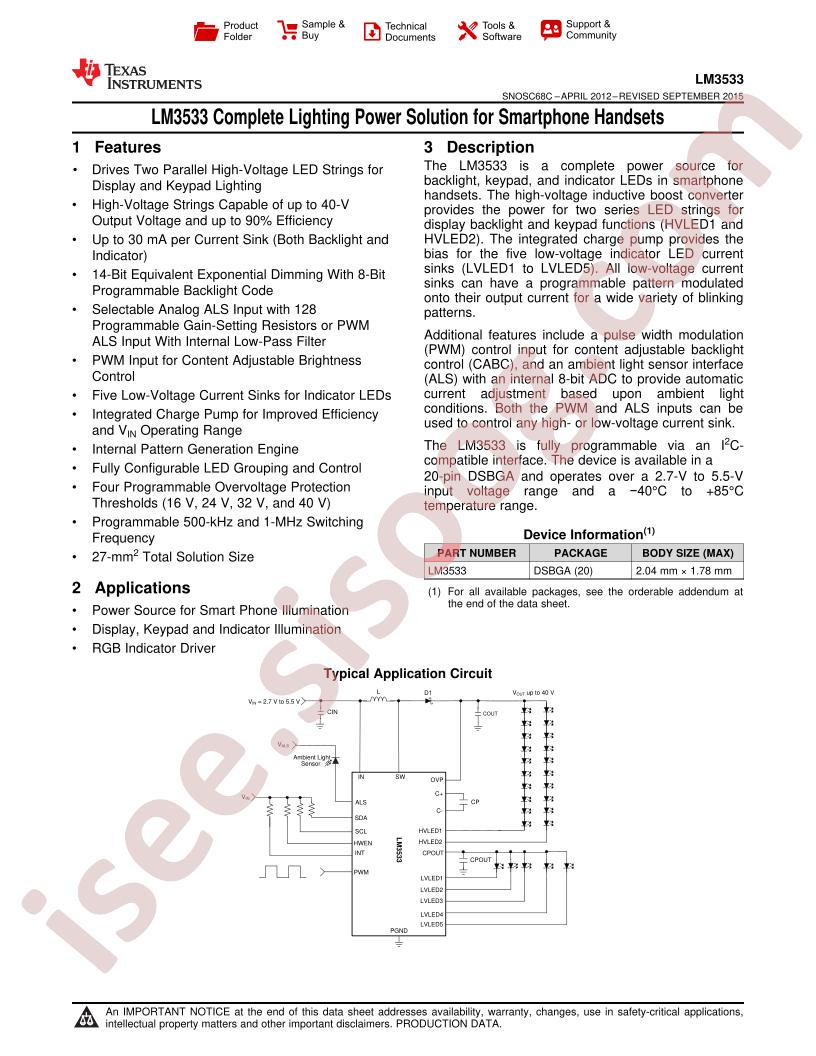

LM3533 Datasheet |
|---|
مشخصات
- Series: -
- Type: DC DC Regulator
- Package / Case: 20-WFBGA
- Frequency: 500kHz, 1MHz
- Number of Outputs: 7
- Topology: Step-Up (Boost), Switched Capacitor (Charge Pump)
- Part Status: Active
- Mounting Type: Surface Mount
- Operating Temperature: -40°C ~ 125°C (TJ)
- Internal Switch(s): Yes
- Applications: Backlight
- Manufacturer: Texas Instruments
- Voltage - Supply (Min): 2.7V
- Current - Output / Channel: 30mA
- Voltage - Output: 40V
- Packaging: Cut Tape (CT)
- Base Part Number: LM3533
- Supplier Device Package: 20-µSMD (1.65x2.06)
- Voltage - Supply (Max): 5.5V
- Dimming: PWM
- detail: LED Driver IC 7 Output DC DC Regulator Step-Up (Boost), Switched Capacitor (Charge Pump) PWM Dimming 30mA 20-µSMD (1.65x2.06)
