دیتاشیت ADP7105ACPZ-5.0-R7

ADP7105

مشخصات دیتاشیت

نام دیتاشیت ADP7105
حجم فایل 865.553 کیلوبایت
نوع فایل pdf
تعداد صفحات 26

دانلود دیتاشیت ADP7105

ADP7105 Datasheet

مشخصات

  • RoHS: true
  • Category: Power Supply Chip/Linear Voltage Regulators (LDO)
  • Datasheet: Analog Devices ADP7105ACPZ-5.0-R7
  • Output Current: 500mA
  • Output Voltage: 5V
  • Dropout Voltage: 0.55V@(500mA)
  • Output Polarity: positive
  • Number of Outputs: 1
  • Maximum Input Voltage: 20V
  • Operating Temperature: -40°C~+125°C
  • Quiescent Current (Ground Current): 900uA

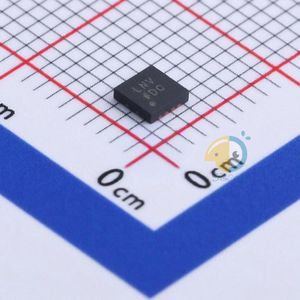

  • Package: LFCSP-8
  • Manufacturer: Analog Devices
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Output Configuration: Positive
  • Output Type: Fixed
  • Number of Regulators: 1
  • Voltage - Input (Max): 20V
  • Voltage - Output (Min/Fixed): 5V
  • Voltage - Output (Max): -
  • Voltage Dropout (Max): 0.55V @ 500mA
  • Current - Output: 500mA
  • Current - Quiescent (Iq): 900µA
  • Current - Supply (Max): 1.6mA
  • PSRR: 60dB ~ 50dB (10kHz ~ 100kHz)
  • Control Features: Enable, Power Good, Under Voltage Lockout
  • Protection Features: Over Current, Over Temperature, Reverse Polarity
  • Mounting Type: Surface Mount
  • Package / Case: 8-WFDFN Exposed Pad, CSP
  • Supplier Device Package: 8-LFCSP-WD (3x3)
  • Base Part Number: ADP7105
  • detail: Linear Voltage Regulator IC 1 Output 500mA 8-LFCSP-WD (3x3)
