دیتاشیت DRV8702QRHBRQ1
مشخصات دیتاشیت
| نام دیتاشیت | DRV8702-Q1, DRV8703-Q1 Datasheet |
|---|---|
| حجم فایل | 2032.033 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 62 |

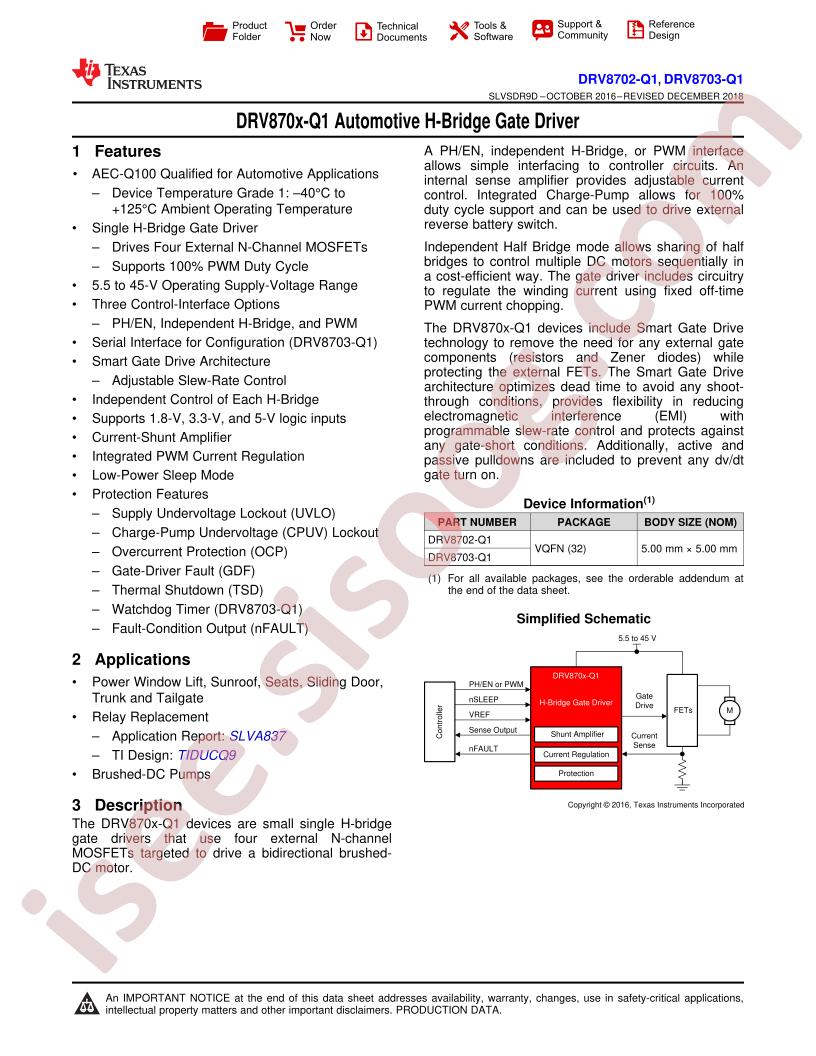

دانلود دیتاشیت DRV8702-Q1, DRV8703-Q1 Datasheet |
DRV8702-Q1, DRV8703-Q1 Datasheet Datasheet |
|---|
مشخصات
- Series: Automotive, AEC-Q100
- Operating Temperature: -40°C ~ 150°C (TJ)
- Technology: Power MOSFET
- Package / Case: 32-VFQFN Exposed Pad
- Function: Driver - Fully Integrated, Control and Power Stage
- Current - Output: -
- Part Status: Active
- Base Part Number: DRV8702
- Mounting Type: Surface Mount, Wettable Flank
- Motor Type - Stepper: -
- Applications: Brushed DC
- Motor Type - AC, DC: Brushed DC
- Manufacturer: Texas Instruments
- Voltage - Supply: 5.5V ~ 45V
- Step Resolution: -
- Packaging: Cut Tape (CT)
- Output Configuration: Half Bridge (2)
- Interface: PWM
- Voltage - Load: -
- Supplier Device Package: 32-VQFN (5x5)
- detail: Motor Driver Power MOSFET PWM 32-VQFN (5x5)
